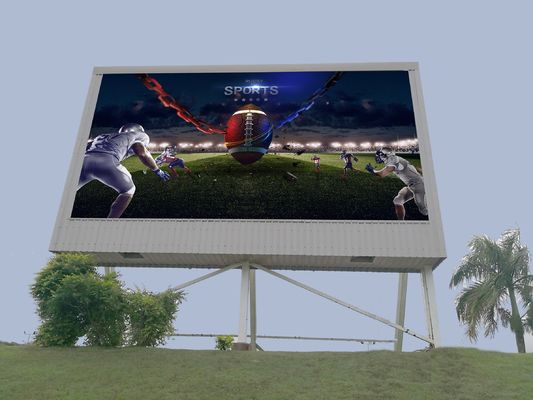

SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P8OSTRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Stadium LED Display Pixel Pitch 8mm
Pixel Density/pixels/m² 15625 Pixel/㎡ Module Size/mm 320x160
Configuration 1R1G1B Application TV Live Broadcast, Exhibition Hall, Performing Arts Center
Screen Dimension Customized Size Tube Chip Color Full Color
Usage Outdoor,Indoor Pixels 8mm
Display Function Video,Animation,picture,text Brightness 6500cd/sqm
Warranty 3~5 Years Life Span 100000 Hours
Module Size 320*160 Mm Led Chip SMD3535
Product Name Rental Led Display,Full Color Led Display,Advertising Board Outdoor P8 Led Screen Refresh Rate ≥1920 Hz
Color 1R1G1B Scan Mode 1/8scan
Cabinet Size 960*960*128mm
High Light

stadium perimeter led display

,

led stadium advertising boards

Leave a Message
Product Description

SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration​



Features



1. Reliable magnetic capacitive character design

2. support various interfaces and signal sources
3. advanced digital conrol technology
4. support multi-transmission methods
5. network control
6. automatic brightness control
7. super processing ability
8. strong colour restoration
9. Small volume,easy installation and transportation
10. customized size and elegant shape
11. Easy connection and combination
12. bright,good viewing angle to impact your audience
13. Parallel communication processing prevents multiple module failure
14. superior silicone potting protection
15. Instantly change your advertising messages from your PC
16. durable and economic
17. Good after-sales service



Application:
Large stadium, Waiting room, TV live broadcast, Exhibition hall, Performing arts center, Entertainment venue, Large-scale art show, Concert etc.



Product specification




Product specification

Model P6.67 P8
Pixel Pitch 6.67 mm 8 mm
LED Type SMD3535 SMD3535
Configuration 1R1G1B 1R1G1B
Module Resolution 48*24 pixels 40*20 pixels
Module Size 320*160 mm 320*160 mm
Pixel Density 22477 pixel/㎡ 15625 pixel/㎡
Refresh Rate ≥ 1920Hz ≥ 1920Hz
Gray Scale 16 Bit 16 Bit
Brightness ≥ 7000 cd/㎡ ≥ 7000 cd/㎡
Scan Mode 1/6 1/8
Frame Rate 50HZ~60HZ 50HZ~60HZ
Viewing Angle H:140°, V:140° H:140°, V:140°
Material Die-casting Aluminum Die-casting Aluminum
Cabinet Resolution 144*144 pixels 120*120 pixels
Cabinet Size 640*640*75mm 960*960*75mm
Cabinet Weight 25Kg 25Kg
IP Rating IP67 IP63 IP67 IP63
Control System Nova/Linsn Nova/Linsn
Operation System Windows/me/200NT/XP Windows/me/200NT/XP
Working-Temperature '-20℃~60℃ '-20℃~60℃
Working Humidity 10%~90% RH 10%~90% RH
Input Voltage AC 110~220 V (±5%) AC 110~220 V (±5%)
Blind spot rate ≤0.01% ≤0.01%
MTBF 35000 Hour 35000 Hour
Lifespan 100000 Hour 100000 Hour



SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration 0SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration 1SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration 2SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration 3SHD P8 Stadium Display Screen 960*960mm Waterproof Cabinet IP65 With Strong Colour Restoration 4

Competitive Advantages:


1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation



2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
