P6mm Stadium Outdoor LED Video Display board For Entertainment Venue 1/8 Scan

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P6
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stadium LED Display Pixel Pitch 6mm
Pixel Density 27,777 Pixels/㎡ Driving Mode 1/8
Cabinet Material Iron / Aluminum Application Large Stadium, Waiting Room, TV Live Broadcast
Highlight

stadium perimeter led display

,

led stadium advertising boards

Leave a Message
Product Description

P6mm Stadium Outdoor LED Video Display board For Entertainment Venue 1/8 Scan



Description:



1. Top Cabinet Special Design for Collision Avoidance.



2. Adjustable Soleplate Design, Cabinet Freely Regulated Angle 55°to 90°.



3. Back door and Cabinet Façade parallel, Simple and Practical.



4. Stowable Regulating Bracket, Saving Storage Space.



5. Separation of Inside Power Supplier and Control System Ensures Easy Maintenance.



6. Safe, Convenient and Quick.



7. Power Supplier and Signal Plug Connectors, International Standard.



Features of P6 Outdoor LED perimeter screen:



1. High Brightness

More than 7000nits and it can be sawn from long distance.



2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.



3. Adjustable Support and Quick Rigging System

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging system design makes the installation and dismantle easier and faster.



4. Cost Effective LED Display

Energy saving design, help you saving cost.

5. Waterproof and 2 Year Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.



Application:

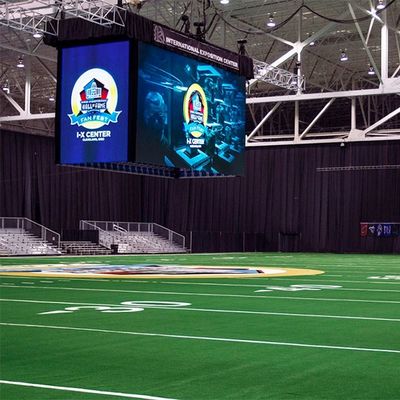

Large stadium, Waiting room, TV live broadcast, Exhibition hall, Performing arts center, Entertainment venue, Large-scale art show, Concert etc.





Product Series P6
Pixel Pitch 6mm
Pixel Package SMD3535
LED Configuration 1R1G1B
Pixel Density 27,777 Pixels/㎡
Module Size 192mm x 192mm
Module Resolution 32 x 32 dots
Suggested Cabinet Size 960mm x 960mm
Cabinet Resolution 160 x 160dots
Cabinet Material Iron / Aluminum
Brightness ≥ 7000 nits
Color Temperature 3000-12000K
Viewing Angle H-140°/ V-140°
Driving Mode 1/8
Refresh Rate 1920-3840Hz
Frame Frenquency 60Hz
Grey Level 4096~65536
Number of Color >1 billion
Maximum Power Consumption 350 W/㎡
Average Power Consumption 120~180 W/㎡
Input Voltage AC220±10%, AC110 ±10%
Input Frequency 50-60Hz
External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating IP65
