P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P6.67OPRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Sport Perimeter LED Display Pixel Pitch (mm) 6mm
Scan 1/8 Brightness (nits) 2200
IP Rate IP65/IP43 Service Access Front / Rear
Highlight

AVOE Sport Perimeter LED Display

,

P6.67 Sport Perimeter LED Display

,

2200 Nits AVOE Led Display

Leave a Message
Product Description

Sports perimeter led display P6.67/P8/P10 AVOE Led Display For All Weather



Advantages

1. We Use Top Rate LED to make best Led display screens, as well as best power supply, high quality signal & power cables, etc.

2. Strict Perfect anti-static precautions: during manufacturing, static electric damage is the most serious problem.

3. Use advanced processing technology, machinery guarantee for high-quality and long-life time products

4. Can be normally used under the temperature between -20 and +65 degree .

5. With production capacity of 8,000 m2 per month, we can make in-time delivery.

6. we can tailor our product according to our clients requirements;





Specification

Indoor / Outdoor PM IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Matrix Per Sq.m 27777 10000 15625 10000 3906
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6800 7500 8000
Scan 1/8 1/4 1/3 1/2 1/1
Module Dimension 192x192mm/0.63x0.63ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 256x256mm/0.84x0.84ft
Cabinet Dimension 960x960mm/3.15x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1024x1024mm/3.36x3.36ft
Cabinet Resolution 160x160 128x96 160x120 128x96 64x64
Cabinet Weight 40kg / 88Ib (Iron) 44kg / 97Ib (Iron) 49kg / 108Ib (Iron) 48kg / 105Ib (Iron) 46kg / 101Ib (Iron)
Power Con. (Max / Avg) 550 / 100 w/sq.m 500 / 90 w/sq.m 680 / 120 w/sq.m 650 / 110 w/sq.m 690 / 130 w/sq.m
IP Rate IP43 IP65
Service Access Front / Rear Front / Rear
Refresh Rate (HZ) 2880 ≥2880
Grey Scale (bit) 14bit 16bit
Viewing Angle (H/V) 140 / 140 140 / 140
Input Voltage (AC) 110V / 240V 110V / 240V



Detailed:

Solid, Compact, Strong Cabinet Design For All Weather and Prevent for Any External Attacks

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 0

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 1

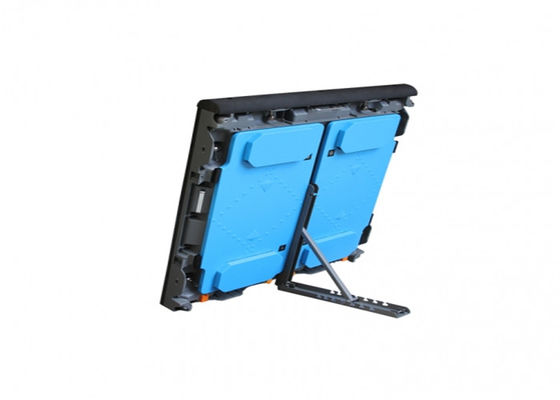

Rotating Design with Wheels for Emergency Exit

PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations.

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 2

Adjustable Bracket

Cabinet adjustable angle between 60°and 90°

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 3

Protective Top Cover and Rubber Module Mask

Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 4

Independent RCD Protection

RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 5

Professional Software PM Player

LEDFUL PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 6

4H Makes Perfect Visual Effect

· High Brightness: ≥7000nits · High Grey Scale: 65536 levels
· High Refresh Rate: 2880Hz · High Contrast: 5000:1

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 7
P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 8

SMD Performance and View Angle

Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 9

Energy Saving Stadium Perimeter
LED Display

1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 10

Backup for Recycle

P6.67 P8 P10 2200 Nits AVOE Sport Perimeter LED Display 11
