P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P6.67OPRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Sport Perimeter LED Display Pixel Pitch (mm) 8mm
Pixel Matrix Per Sq.m 15625 Cabinet Resolution 160x120
Viewing Angle (H/V) 140 / 140 Service Access Front / Rear
High Light

perimeter led screen

,

football stadium led display

Leave a Message
Product Description

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet



Description:

1. High brightness which is adjustable to meet the needs of various working environment sufficiently.

2. Soft mask and protection pillow to protect both players and the led screen itself.

3. Angle adjustable: Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

4. All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.

5. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.



Applications: Especially applicable for football stadium / cricket stadium and other sports fields.





Perimeter LED Screen Main Features :



1. Multifunctional usage: Available for both indoor and outdoor stadium perimeter application,also can be used for rental events LED screen.



2. Soft,replaceable, impact-resistant shaders protect LEDs from harm and will not injure players in the event of a collision.



3. Super light design,with only 25kg/pcs,save both shipping costs and labor costs.



4. The display with two unique, rugged stands can be adjusted different angles showing a perfect image to live audiences and broadcast cameras.



5. The whole perimeter LED display system is designed according to the superior quality standard,Anti-interference security assurance.



Specification

Indoor / Outdoor PM IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Matrix Per Sq.m 27777 10000 15625 10000 3906
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6800 7500 8000
Scan 1/8 1/4 1/3 1/2 1/1
Module Dimension 192x192mm/0.63x0.63ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 256x256mm/0.84x0.84ft
Cabinet Dimension 960x960mm/3.15x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1024x1024mm/3.36x3.36ft
Cabinet Resolution 160x160 128x96 160x120 128x96 64x64
Cabinet Weight 40kg / 88Ib (Iron) 44kg / 97Ib (Iron) 49kg / 108Ib (Iron) 48kg / 105Ib (Iron) 46kg / 101Ib (Iron)
Power Con. (Max / Avg) 550 / 100 w/sq.m 500 / 90 w/sq.m 680 / 120 w/sq.m 650 / 110 w/sq.m 690 / 130 w/sq.m
IP Rate IP43 IP65
Service Access Front / Rear Front / Rear
Refresh Rate (HZ) 2880 ≥2880
Grey Scale (bit) 14bit 16bit
Viewing Angle (H/V) 140 / 140 140 / 140
Input Voltage (AC) 110V / 240V 110V / 240V



Detailed:

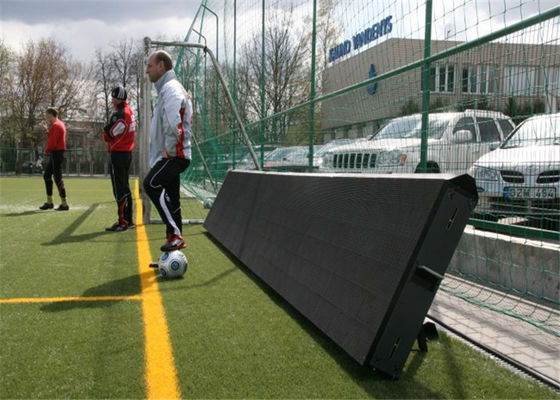

Solid, Compact, Strong Cabinet Design For All Weather and Prevent for Any External Attacks

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 0

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 1

Rotating Design with Wheels for Emergency Exit

PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations.

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 2

Adjustable Bracket

Cabinet adjustable angle between 60°and 90°

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 3

Protective Top Cover and Rubber Module Mask

Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 4

Independent RCD Protection

RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 5

Professional Software PM Player

PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 6

4H Makes Perfect Visual Effect

· High Brightness: ≥7000nits · High Grey Scale: 65536 levels
· High Refresh Rate: 2880Hz · High Contrast: 5000:1

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 7
P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 8

SMD Performance and View Angle

Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 9

Energy Saving Stadium Perimeter
LED Display

1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 10

Backup for Recycle

P6.67 P8 P10 Sports Perimeter LED Display 960x960mm Die Casting Aluminum Cabinet 11
