Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P8
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Outdoor LED Advertising Screen Pixel Pitch(mm) 8 Mm
Pixel Density(pixels/㎡) 15625 Pixel/㎡ Pixel Configuration 1R1G1B
Viewing Angle(deg.) H:140°, V:140° Application Commercial Advertising, Night Club, Mobile Media,
Usage Outdoor,subway Station,highway Station Advertising,train Station Pixels 8mm
Screen Dimension Customized Size,960*960 Tube Chip Color Full Color
Display Function Video,animation,graphics Brightness 6500cd/sqm
Warranty 5 Years Life Span 100000hours
Color RGB,Full-color,16.7M,1R1G1B Module Size 320x160mm
Product Name Led Display Screen Led Chip Kinglight
Certification CE,UL,CCC,ROHS,GS Cabinet Size 960*960*128mm
Input Voltage AC110V - AC240V
Highlight

commercial advertising led display

,

led advertising panel

Leave a Message
Product Description

Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals



Features:



1. Outdoor display: IP65 waterproof grade and certification through SGS



2. Complete series products, customized for your different need.



3. Strong cabinet with reinforcing rib, tensile and quakeproof, with dissipation holes, lifespan more than 10 years.



4. Support dot by dot correction, to make sure the consistency of color and brightness for one screen.



5. Using power saving IC driver and special design PCB ,lower current power supply to save energy more than 30% ;



Aplication:

Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc.





Specifications:

1 Outdoor Advertising LED Display
2 Model No. AE-P8
3 Pixel Pitch 8mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 40*20 pixels
7 Module Size 320*160 mm
8 Pixel Density 15625 pixel/㎡
9 Refresh Rate ≥ 1920Hz
10 Gray Scale 16 Bit
11 Brightness ≥ 6000-7000 cd/㎡
12 Scan Mode 1/5
13 Frame Rate 50HZ~60HZ
14 Viewing Angle H:140°, V:140°
15 Material Iron/Aluminum
16 Cabinet Resolution 120*120 pixels
17 Cabinet Size 960*960*120mm
18 Cabinet Weight 26 Kgs/m2
19 IP Rating Front IP65, Rear IP54
20 Max.Power Consumption 780W/Panel
21 Avg.Power Consumption 300W/Panel
22 Control System Nova/Linsn
23 Operation System Windows/me/200NT/XP
24 Working-Temperature -20℃~60℃
25 Working Humidity 10%~90% RH
26 Input Voltage AC 110~220 V (±5%)
27 Blind spot rate ≤0.01%
28 MTBF 35000 Hour
29 Lifespan 100000 Hour

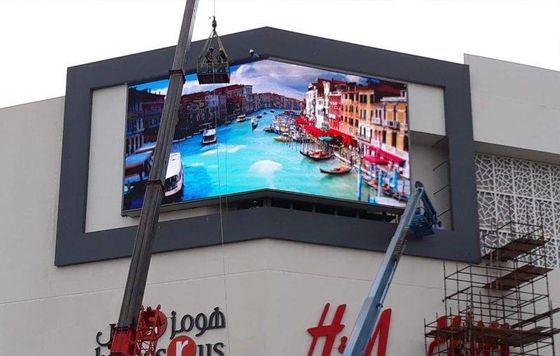

Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 0
Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 1
Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 2Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 3Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 4Magnesium alloy Cabinet 960*960mm P8 big Outdoor avertising Screen / AVOE LED Advertising Board For Banks / Hospitals 5
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.



Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
