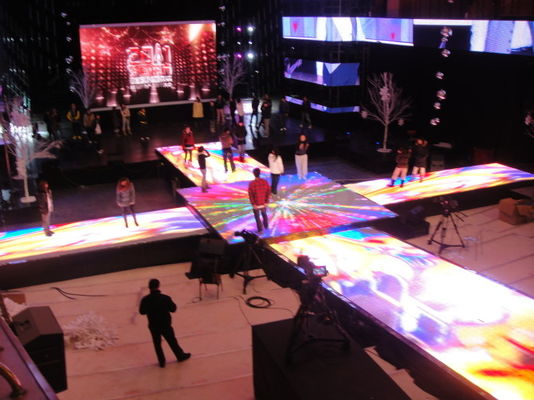

Energy Saving Custom Led Screens / Led Video Dance Floor 90mm Casing Thickness

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P6.25IDRGB
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Detail Information
Name: Dance Floor LED Display Pixel Pitch: 6.25mm
Pixels: 1R1G1B Module Size: 250x250 Mm
Physical Density: 25600 / ㎡ Cabinet Weight: 24.1KG/Unit
High Light:

dance floor led screen


led dance floor panels

Product Description

Energy Saving Custom Led Screens / Led Video Dance Floor 90mm Casing Thickness



● Super bright LED lamp bead gold line package and A grade raw material plastic package.

● High-end LED screen special waterproof silica gel.

● PCB adopts exclusive line design.

● The signal line and power line adopt the standard design of the standard.

● LED lamp bead bracket pure copper bracket, red light 12MIL, blue green 13MIL.

● The PC cover is made of anti-slip and the bearing weight is above 2T.

● Realization of human-computer interaction experience (abbreviation: interactive effect.)


Pixel Pitch 6.25mm
Pixels 1R1G1B
LED Type SMD2727
Physical density 25600 / ㎡
Module size 250x250 mm
Modular resolution 48x48
Cabinet size 500(W)×1000(H)mm
Cabinet weight 24.1KG/Unit
Casing thickness 90mm
Out of control points ≤3/100000
Unit die joint The joint size of the plate gap is consistent and ≤ 2 ㎜
The best distance 8-60m
Perspective The level of 140; , vertical 140;
Surface flatness Maximum error ≤ 2 ㎜
Screen surface ink color Ink consistency, no reflection
Uniformity Module brightness uniformity, uniformity 1:1
Operating humidity 10%--90% RH
Operating temperature - 20 ℃-- 65 ℃
Max. power 600W/㎡
Average power 300W/㎡
Control mode Synchronous with computer VGA (display synchronization)
Control system DVI graphics card + full color control card + fiber transmission
Input mode Computer and other peripherals, PAL/NTSC/SECAM, s-video; VGA. RGB. The Composite Video. SDI, etc.
Computer display module 640×480,800×600,1024×768
Refresh rate >2000hz
Grayscale/color 8192
Brightness >5000 cd/㎡
Service life >100,000hrs
Content Video DVD, VCD, TV, image, text, animation, and others.
Uninterrupted working time ≥10000 hours
interfaces Standard Ethemer network interface, RS422
Communication medium, control distance Multi-mode optical fiber < 500m, single mode fiber transmission < 30km, 5 lines < 100 m
Protection technology Moisture-proof, dustproof, antiseptic, anti-static, lightning proof, and have the function of overcurrent, short circuit, overpressure and undervoltage protection


Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation


2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
