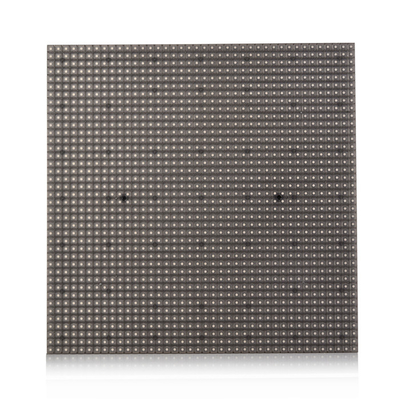

2T Load Bearing Dance Floor LED Display 4.81mm Pixel Pitch 140/140 Viewing Angle

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P6.25IDRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Dance Floor LED Display Pixel Pitch 4.81mm
Pixels 1R1G1B Brightness (nits) 2500
Load Bearing 2T Viewing Angle (H/V) 140/140
High Light

dance floor led screen


interactive led display

Leave a Message
Product Description

2T Load Bearing Dance Floor LED Display 4.81mm Pixel Pitch 140/140 Viewing Angle




Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2

Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2




1. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.


2. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.


3. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA.


4. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.


5. Line-Double technology is adopted for the picture adjustment.


5.Strickly pressure testing and can stand pressure 500kg/sqm.


6.Semi-outdoor design, IP rating can reach IP 65.




F Series Indoor FI 3.9 FI 4.6 FI 4.8 FI 5.2 FI 6.2
Pixel Pitch(mm) 3.91mm 4.625mm 4.81mm 5.2mm 6.25mm
Pixel Matrix Per Sq.m 65536 46656 43264 36864 25600
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 2300 2500 2500 2500 2800
Scan 1/16 1/13 1/13 1/10 1/10
Cabinet Resolution 128×256 108×216 104×208 96×192 80×160
Power Con. (Max/Avg) 700/200 w/sq.m 680/1800 w/sq.m 700/200 w/sq.m 710/210 w/sq.m 730/220 w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26ft
Cabinet Weight 10kg/( Die-casting Aluminum)
Service Access Front/Rear
Load Bearing 2T
Refresh Rate (HZ) 1920
Grey Scale (bit) 16
Viewing Angle (H/V) 140/140
IP Rate IP43
Input Voltage (AC) 110/240

Specifications and photos are subject to change without prior notice.







Interactive Floor LED Display

Special driving IC built inside the LED display PCB will work together with interactive control system.
It will easily and quickly make you interesting and attractive between the players and display.Non Skid Dance Floor Led Screen , Front Service Led Display Light Weigh P6.25

Anti-skid, Anti-knock, Anti-glare Mask

Anti scratch Mask with HI-density PC


High Load Bearing with 2T weight

Non Skid Dance Floor Led Screen , Front Service Led Display Light Weigh P6.25

Easy Installation and Maintenance

Non Skid Dance Floor Led Screen , Front Service Led Display Light Weigh P6.25

Non Skid Dance Floor Led Screen , Front Service Led Display Light Weigh P6.25Non Skid Dance Floor Led Screen , Front Service Led Display Light Weigh P6.25

Two Floor Standing Solutions

Base Support


Rail Support


All weather Resistance

LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.
