P10 Sport Perimeter LED Display

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P10OPRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Sport Perimeter LED Display Pixel Pitch (mm) 10mm
Pixel Matrix Per Sq.m 10000 Pixel Configuration SMD3535
IP Rate IP65 Viewing Angle (H/V) 140 / 140
High Light

P10 Sport Perimeter LED Display


SMD3535 Sport Perimeter LED Display


P10 Outdoor Perimeter LED Display

Leave a Message
Product Description

P10 Sport Perimeter LED Display


P10 Sports perimeter led display 960X960mm 140 / 140 Degree Viewing Angle perimeter board advertising


Sport Perimeter LED Display feature

1. High brightness with low luminous decay

2. Stable and reliable with IP65 rating

3. Good heat disspation with scientific structure design

4. With front maintenance

5. Passed CE,RoHS,FCC certificate

6. Offer 6 years warranty


Function and Technology Character

1. Soft mask, protect the led lamp as well as players from collision.

2. Using high efficient optical fiber transmission system, avoid signal delay for long transmission distance of the soccer field.

3. Double signal cable for hot back up, when one data cable broken off, another one will back up automatically.

4. IP65 waterproof used for all weather conditions.

5. Equipped with dedicated scoring system, easy to edit program, such as scores update, playback.

6. High refresh rate, up to 4800HZ, no flicker, even under dynamic shooting camera on the sports field.



Indoor / Outdoor PM IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Matrix Per Sq.m 27777 10000 15625 10000 3906
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6800 7500 8000
Scan 1/8 1/4 1/3 1/2 1/1
Module Dimension 192x192mm/0.63x0.63ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 320x160mm/1.05x0.52ft 256x256mm/0.84x0.84ft
Cabinet Dimension 960x960mm/3.15x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1280x960mm/4.2x3.15ft 1024x1024mm/3.36x3.36ft
Cabinet Resolution 160x160 128x96 160x120 128x96 64x64
Cabinet Weight 40kg / 88Ib (Iron) 44kg / 97Ib (Iron) 49kg / 108Ib (Iron) 48kg / 105Ib (Iron) 46kg / 101Ib (Iron)
Power Con. (Max / Avg) 550 / 100 w/sq.m 500 / 90 w/sq.m 680 / 120 w/sq.m 650 / 110 w/sq.m 690 / 130 w/sq.m
IP Rate IP43 IP65
Service Access Front / Rear Front / Rear
Refresh Rate (HZ) 2880 ≥2880
Grey Scale (bit) 14bit 16bit
Viewing Angle (H/V) 140 / 140 140 / 140
Input Voltage (AC) 110V / 240V 110V / 240V

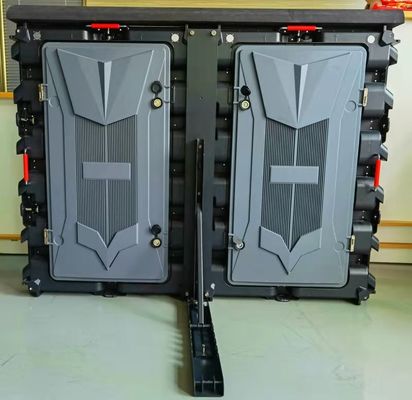

Solid, Compact, Strong Cabinet Design For All Weather and Prevent for Any External Attacks

P10 Sport Perimeter LED Display 0

P10 Sport Perimeter LED Display 1

Rotating Design with Wheels for Emergency Exit

PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations.

P10 Sport Perimeter LED Display 2

Adjustable Bracket

Cabinet adjustable angle between 60°and 90°

P10 Sport Perimeter LED Display 3

Protective Top Cover and Rubber Module Mask

Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.

P10 Sport Perimeter LED Display 4

Independent RCD Protection

RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.

P10 Sport Perimeter LED Display 5

Professional Software PM Player

PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.

P10 Sport Perimeter LED Display 6

4H Makes Perfect Visual Effect

· High Brightness: ≥7000nits · High Grey Scale: 65536 levels
· High Refresh Rate: 2880Hz · High Contrast: 5000:1

P10 Sport Perimeter LED Display 7
P10 Sport Perimeter LED Display 8

SMD Performance and View Angle

Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing

P10 Sport Perimeter LED Display 9

Energy Saving Stadium Perimeter
LED Display

1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

P10 Sport Perimeter LED Display 10

Backup for Recycle

P10 Sport Perimeter LED Display 11
