|Place of Origin:||Shen Zhen China|
|Brand Name:||AVOE LED|
|Minimum Order Quantity:||5sqm|
|Packaging Details:||Flight case, Plywood case|
|Delivery Time:||10 working days after receiving the payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||10K sqm per month|
|Name:||Creative LED Screen||Pixel Pitch (mm):||P2 Indoor|
|Pixel Density (dot/m²):||250000||Pixel Color:||RGB|
|Module Units Size (mm):||240 Mm * 240 Mm||Brightness (cd/m²):||900 Cd ~ 1200 Cd|

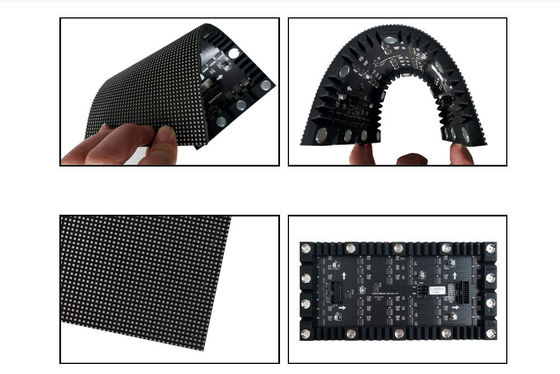

Commercial Dynamic Creative LED Screen For Advertisement IP31 IP Level
1. High brightness which is adjustable to sufficiently meet the needs of various application environments.
2. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
3. Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements
4. All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade in front side to be IP65 . .
5.Display even after long-term use of perfect quality reproduction and enough brightness and white balance.
Application and function
Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1) Video display for advertisement
2) Live broadcast for news, sport, concert…
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
|Technical specification||Product modules|
|Pixel pitch (mm)||P1.875 Indoor||P2 Indoor||P2.5 Indoor||P3 Indoor||P4 Indoor|
|Pixel density (dot/m²)||284444||250000||160000||111111||62500|
|LED Size / Color||SMD 1010||SMD 1010||SMD 1515||SMD 2020||SMD 2020|
|Module units size (mm)||240 mm * 240 mm|
|Module definition (dot)||128 dots * 64 dots||120 dots * 60 dots||96 dots * 48 dots||80 dots * 40 dots||60 dots * 30 dots|
|Scan freq (Hz)||1920 Hz ~ 3840 Hz|
|Scan mode||1/32 scan||1/30 scan||1/24 scan||1/20 scan||1/15 scan|
|Brightness (cd/m²)||900 cd ~ 1200 cd|
|View angle||140° / 140°|
|Min.viewing distance||≥ 1.8 m||≥ 2 m||≥ 2.5 m||≥ 3 m||≥ 4 m|
|Frame freq (Hz)||60 Hz|
|Working voltage (V)||220V / 110 V ~ 220 V|
|Power Consumption Max/Avg (W/m²)||700 W / 350 W||700 W / 350 W||700 W / 350 W||800 W / 200 W||450 W / 150 W|
|Life span||100000 hours|
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
6. Small order accepted.
1. Service before sales
Training before operation
2. After sale service
Prompt question resolving
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
