|Place of Origin:||Shen Zhen China|
|Brand Name:||AVOE LED|
|Minimum Order Quantity:||5sqm|
|Packaging Details:||Flight case, Plywood case|
|Delivery Time:||10 working days after receiving the payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||10K sqm per month|
|Name:||Creative LED Screen||Pixel Pitch (mm):||P4 Indoor|
|Pixel Density (dot/m²):||62500||Pixel Color:||RGB|
|Module Units Size (mm):||240 Mm * 240 Mm||Brightness (cd/m²):||900 Cd ~ 1200 Cd|

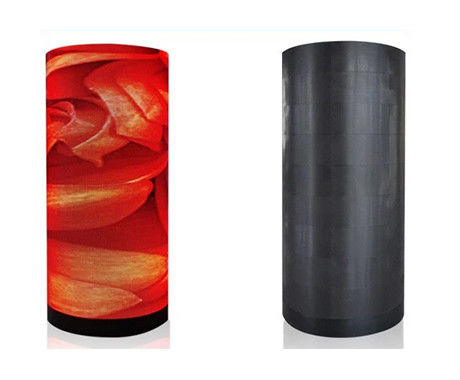

Safety P4 Cylinder Led Display , Custom Shaped Led Screen Anti High Temperature
Detailed Product Descriptions
1. CE,ROHS,ISO9001, FCC,CCC,SAA,PSE,PCC&ROHS,C-TRCK&RCM
2. High refresh rate and brightness
3. Energy saving
4. fast delivery
5. 2 years warranty
It's the best creative LED large screen system you're looking for. It produces vivid, color rich images in any lighting condition from wide viewing angles.. Configure it the way you want it –in virtually any shape or size and see your content come alive like never before.
1. Video function
2. Text /image/information publish
4. Safety function
5. Accurate system:no error occurs.
6. Response time :real time.
7. Reaction function
8. Remote monitoring –details.
9. Remote and step on powering system
10. anti-lightening functions
11. anti-high temperature functions
12. System protection function
The led display system has some protection functions of anti-high temperature, Anti-corrosion, pest control, waterproof, dust-proof, lightning protection, anti-static, wind, earthquake, anti-jamming systems.
13. Set up parameter
Brightness, grey scale, contrast ration, temperature parameter set up function.
14. System extension function
Video camera, HD camera, DVD, can be introduced into the system.
|Technical specification||Product modules|
|Pixel pitch (mm)||P1.875 Indoor||P2 Indoor||P2.5 Indoor||P3 Indoor||P4 Indoor|
|Pixel density (dot/m²)||284444||250000||160000||111111||62500|
|LED Size / Color||SMD 1010||SMD 1010||SMD 1515||SMD 2020||SMD 2020|
|Module units size (mm)||240 mm * 240 mm|
|Module definition (dot)||128 dots * 64 dots||120 dots * 60 dots||96 dots * 48 dots||80 dots * 40 dots||60 dots * 30 dots|
|Scan freq (Hz)||1920 Hz ~ 3840 Hz|
|Scan mode||1/32 scan||1/30 scan||1/24 scan||1/20 scan||1/15 scan|
|Brightness (cd/m²)||900 cd ~ 1200 cd|
|View angle||140° / 140°|
|Min.viewing distance||≥ 1.8 m||≥ 2 m||≥ 2.5 m||≥ 3 m||≥ 4 m|
|Frame freq (Hz)||60 Hz|
|Working voltage (V)||220V / 110 V ~ 220 V|
|Power Consumption Max/Avg (W/m²)||700 W / 350 W||700 W / 350 W||700 W / 350 W||800 W / 200 W||450 W / 150 W|
|Life span||100000 hours|
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
6. Small order accepted.
1. Service before sales
Training before operation
2. After sale service
Prompt question resolving
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
