Counter LED Display PH1.86 GOB 4-Sided Wide Viewing Shelf Screen 800nits

MOQ:	1 Piece
Standard Packaging:	Impact-resistant waterproof flight case with protective foam
Delivery Period:	15-25 working days after deposit
Payment Method:	T/T,L/C,Western Union,PayPal
Supply Capacity:	1000 Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

Shenzhen, Guangdong, China

Brand Name

Chipstar LED

Certification

MET, FCC, CCC, RoHS, CE

Model Number

PH1.86

Model:

PH1.86

Pixel Pitch:

1.86mm

LED Arrangement:

Module Dimensions:

320 X 160mm

Module Resolution:

172 X 86 Pixels

Cabinet Resolution:

344 X 1032 Pixels

Module Scan:

1/43s

Display Size:

320 X 480mm / 320 X 640mm

Outer Size:

380 X 1125mm / 380 X 1285mm With Acrylic Box

Material:

Cabinet Weight:

25kg / 28kg

Brightness:

800 Nits (10-level Adjustment)

Max Power Consumption:

440 W/m2

Average Power Consumption:

145 W/m2

Viewing Angle:

160 Deg (W) / 160 Deg (H)

Operating Power Source:

110-240VAC, 50-60Hz

Operating Temperature:

-20C ~ +50C

Refresh Rate:

3840Hz

IP Rating:

Video Interface:

HDMI X 2 (1 Input, 1 Output), USB 2.0 X 1

Audio Interface:

RJ45, WiFi, AP Local Network, 4G Network (Optional)

Control Interface:

Composite, S-Video, Component, HDMI, SDI HD, VGA, DVI

Installation / Maintenance:

Standing, Stacking, Hanging, Wall Mounting, Front Maintenance

Certificate:

MET, FCC, CCC, RoHS, CE

Highlight:

PH1.86 GOB shelf LED display

4-sided wide viewing shelf screen

800nits shelf LED display

Product Description

Counter LED Display PH1.86 GOB 4-Sided Wide Viewing Shelf Screen 800nits

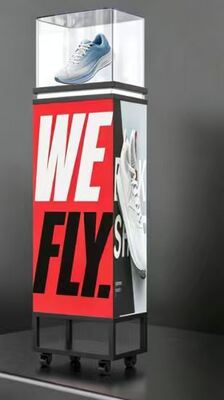

The Counter LED Display PH1.86 is a plug-and-play, floor-standing digital signage unit engineered for counters, shelves and point-of-sale locations in retail and commercial venues. Its four-sided design and 160° wide viewing angle let shoppers see vivid brand content from every direction, turning a simple counter into an eye-catching, brand-boosting display.

With a fine 1.86mm pixel pitch, the PH1.86 renders sharp, lifelike imagery, and its GOB (Glue on Board) treatment covers the SMD LEDs with a protective layer that resists dust, water and impact, solving the problem of dropped or damaged LEDs when the display is bumped in busy retail environments.

Setup is effortless: the unit plugs into any standard 110-240VAC outlet and is ready to display, and content can be managed wirelessly over WiFi through both computer software and a mobile phone app. The screen delivers 800 nits of brightness with ten-level adjustment, so messaging stays bright and readable under store lighting, while the 3840Hz refresh rate guarantees flicker-free, camera-friendly visuals.

Frame-type construction with an acrylic box provides structural strength, and front maintenance access keeps servicing quick and inexpensive. The display is offered in two standard sizes, 320 × 480mm and 320 × 640mm, with custom sizes available on request, and adjustable-height wheels make repositioning simple. Certified to MET, FCC, CCC, RoHS and CE standards, the PH1.86 counter LED display is a dependable, high-impact marketing tool for modern retail.

Key Features of the PH1.86 Counter LED Display

Four-Sided Wide Viewing Angle: A 4-sided design with 160° horizontal and vertical viewing angles ensures the message is visible from every aisle and approach angle.
Plug and Play, Floor Standing: Just plug into the nearest power supply and start displaying, dramatically lowering setup time and operating cost for merchants.
WiFi and Mobile App Control: Content is managed wirelessly via WiFi, with support for both computer software and mobile phone app control for flexible scheduling.
GOB SMD Protection: Glue on Board technology encapsulates the LEDs against dust, water and impact, greatly improving durability in high-traffic retail settings.
Front Maintenance Service: Modules are serviced from the front, reducing maintenance effort and downtime for shop staff.
800 nits Brightness with 10-Level Adjustment: Bright, adjustable output keeps branding vivid and readable under varied in-store lighting.
Customizable Size with Adjustable Wheels: Standard 320×480mm and 320×640mm models are complemented by customizable sizes and height-adjustable wheels for easy repositioning.
Flexible Installation: Supports standing as standard, with optional stacking, hanging and wall-mounting to suit different store layouts.

Technical Specifications

Parameter	Specification
Model	PH1.86
Pixel Pitch	1.86mm
LED Arrangement	GOB
Module Dimensions	320 × 160mm
Module Resolution	172 × 86 pixels
Cabinet Resolution	344 × 1032 pixels
Module Scan	1/43s
Display Size	320 × 480mm / 320 × 640mm
Outer Size	380 × 1125mm / 380 × 1285mm with acrylic box
Material	Iron
Cabinet Weight	25kg / 28kg
Brightness	800 nits (10-level adjustment)
Max Power Consumption	440 W/m²
Average Power Consumption	145 W/m²
Viewing Angle	160° (W) / 160° (H)
Operating Power Source	110-240VAC, 50-60Hz
Operating Temperature	-20°C ~ +50°C
Refresh Rate	3840Hz
IP Rating	IP43
Video Interface	HDMI × 2 (1 input, 1 output), USB 2.0 × 1
Audio Interface	RJ45, WiFi, AP Local Network, 4G Network (Optional)
Control Interface	Composite, S-Video, Component, HDMI, SDI HD, VGA, DVI
Installation / Maintenance	Standing (Standard), Stacking (Optional), Hanging (Optional), Wall Mounting
Certificate	MET, FCC, CCC, RoHS, CE

Applications

The PH1.86 counter LED display is widely used in jewelry stores, cosmetics and beauty stores, specialty shops, shoe stores, luxury boutiques, phone and computer stores, camera boutiques and similar retail environments. It suits countertops, shelf ends, checkout areas and entrance displays where a self-contained, high-visibility advertising screen is needed.

Because it is plug-and-play and movable, retailers and brand marketers can deploy it rapidly for promotions, seasonal campaigns and new product launches, while its four-sided format maximizes exposure from multiple directions.

Packaging & Quality Assurance

Each counter LED display is packed in an impact-resistant, waterproof and insulating flight case to guarantee safety during transportation and to allow repeated reuse for rental and touring applications.

Every unit undergoes brightness, refresh and dead-pixel inspection before dispatch, and the display is backed by a two-year limited warranty with lifetime remote technical support. Spare modules and control components are available on request so that overseas partners can quickly maintain every display and maximize on-site uptime.
