1.86mm Pixel Pitch LED Poster Display with 3840Hz Refresh Rate and 800nits Brightness for Shop Advertising
| Place of Origin | Shen Zhen China |
|---|---|
| Brand Name | AVOE LED |
| Certification | CE RoHS |
| Model Number | AV-P1.86 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiable |

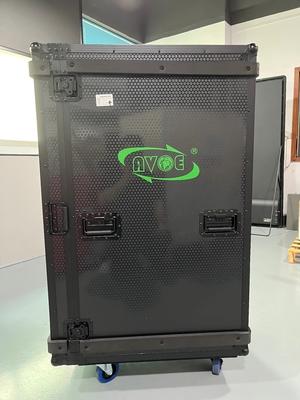

| Packaging Details | Flight case, Plywood case |
| Delivery Time | 10 working days after receiving the payment |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 10K sqm per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LED Poster Display | Resolution/mm | 1.86mm |
|---|---|---|---|
| LED Driving Method | 1/43 Scan | Application | Hotels, Restaurants, Shopping Malls, Banks, |
| Screen Dimension | 640*1920mm | Tube Chip Color | Full Color |
| Brightness | 800 Cd/m2 | Warranty | 3~5 Years |
| Pixel Density | 344*1032 | ||
| Highlight | 1.86mm pixel pitch LED poster display,3840Hz refresh rate LED display,800nits brightness shop advertising screen |
||
Product Description
1.86mm Pixel Pitch LED Poster Display with 3840Hz Refresh Rate and 800nits Brightness for Shop Advertising
Product Attributes
| Attribute | Value |
|---|---|
| Name | LED Poster Display |
| Resolution/mm | 1.86mm |
| LED driving method | 1/43 scan |
| Application | hotels, restaurants, shopping malls, banks |
| Screen dimension | 640*1920mm |
| Tube chip color | Full Color |
| Brightness | 800 cd/m2 |
| Warranty | 3~5 Years |
| Pixel density | 344*1032 |
Product Description
P1.86 Poster LED Display Refresh Rate 3840Hz 800nits for shop advertising
Key Features
- HD Image Quality
- Refresh rate up to 3840Hz
- Brightness at 800nits, 3 times brighter than LCD display
- 160° view angle
- High color reproduction
- Compared with indoor LCD poster, with high brightness, super thin & low-power consumption
- LED Digital poster is also suitable for bright occasions
Technical Specifications
| Item | Technical parameter |
|---|---|
| Pixel Pitch | 1.86mm |
| Module Resolution | 172*86 dots |
| Module Size | 320*160mm |
| Pixel configuration | 1R1G1B |
| Module Chip | Kinglight/Nationstar |
| Driving Method | 1/43Scan |
| Physical Density | 289,444 dots/m2 |
| LED Encapsulation | SMD1515 |
| Module Port | BUH75 |
| Module Consumption | ≤16W |
| Brightness | 800 cd/m2 |
| Cabinet Dimension | 640*1920mm |
| Cabinet External Dimensions | 700*1980*100mm |
| Cabinet Resolution | 344*1032 dots |
| Quantities of module | 2*12 |
| Cabinet Flatness | Tolerance of inter pixel ≤0.3mm |
| Cabinet Material | Aluminum, Iron |
| Cabinet Weight | 42KG |
| Option Distance | 2--80M |
| Viewing Angle | Horizontal 140° Vertical 120° |
| Max. Power consumption | 675W/sqm |
| Driving Device | FM6363 |
| Frame Frequency | 60Hz |
| Screen Flatness | Tolerance of cabinets ≤0.6mm |
| Refresh Frequency | 3840Hz |
| Control Mode | Wifi asynchronization |
| Working Environment | Temperature -10℃~60℃ Humidity 10%~70% |
| Display Working Voltage | AC100-240V , 50Hz/60Hz |
| Colour temperature | 8500K-11500K |
| Communication distance | Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Gray scale | ≥16.7M |
| MTBF | >10,000 hours |
| Support video source | HDMI, CVBS, SDI , DVI etc |

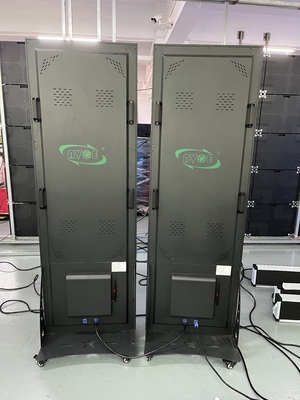

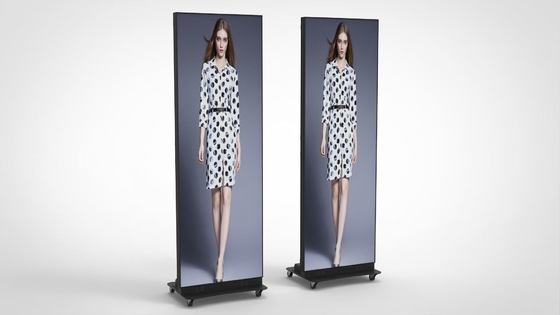

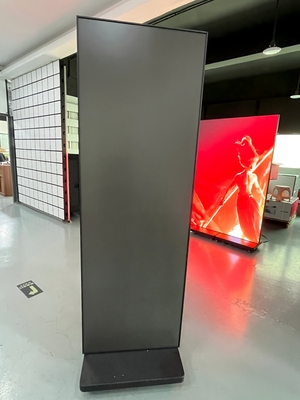

Product Images
Control Methods
- Synchronized / asynchronous system
- Plug and play, Cross-platform operation
- Real time play by connecting to network
- The screen can be controlled with fixed or portable Windows, IOS & Android devices
- The content can be refreshed and stored in built-in media player through WIFI or USB to achieve asynchronous play
Installation Options
Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation
