Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz

Products

Outdoor LED Advertising Screen

Led Gas Price Display

sales08@avoe-led.com

+86-135-3429-6317

Contact Now

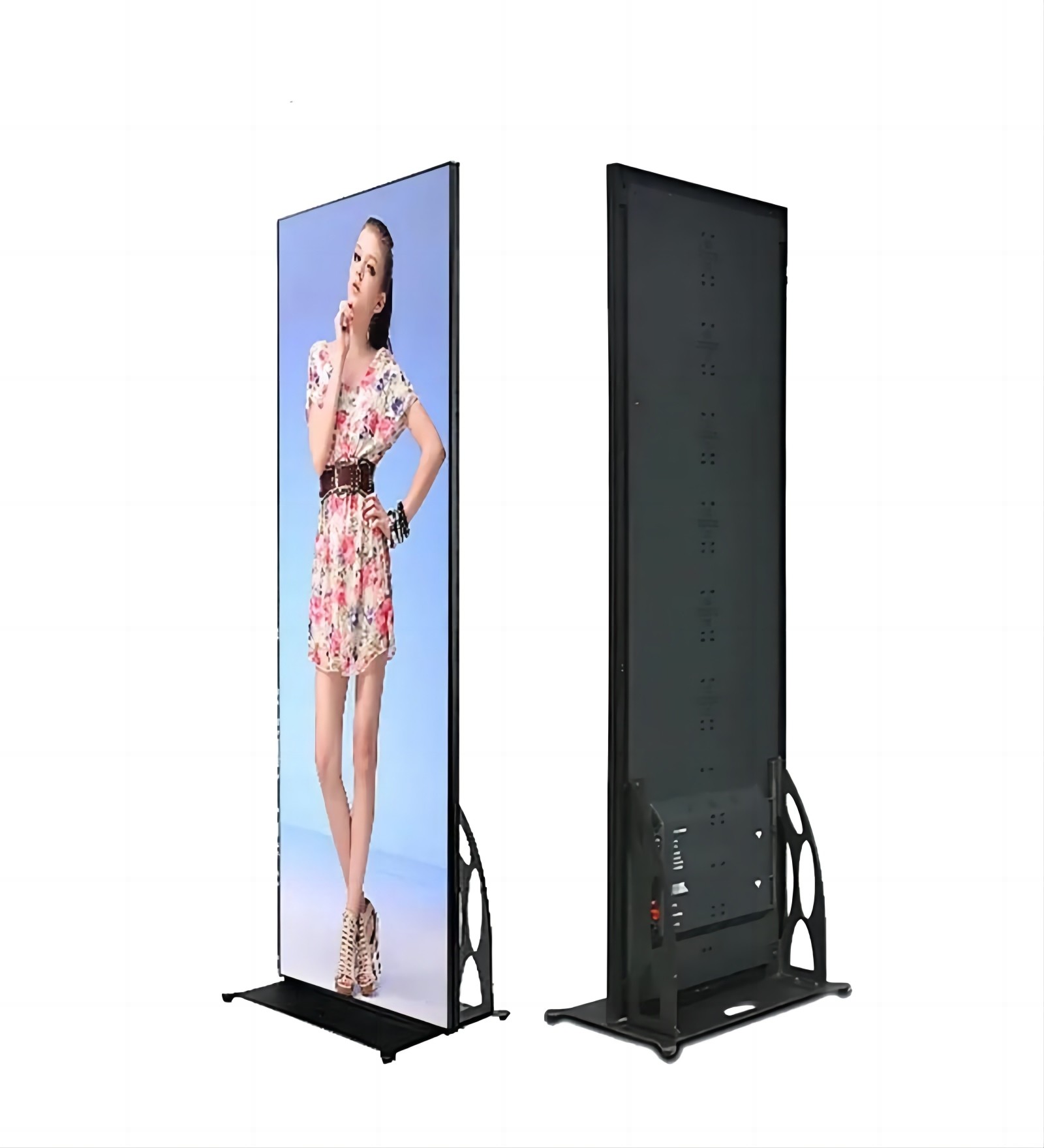

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz

MOQ:	1 unit
Price:	Negotiable
Standard Packaging:	Flight case, Plywood case
Delivery Period:	10 working days after receiving the payment
Payment Method:	T/T, L/C, Western Union, MoneyGram
Supply Capacity:	10K sqm per month

Detail Information

Product Description

Detail Information

Place of Origin

Shen Zhen China

Brand Name

AVOE LED

Certification

CE RoHS

Model Number

AE-P2.5PLD

Name:

LED Poster Display

Resolution/mm:

2.5mm

LED Driving Method:

1/32 Scan

Application:

Hotels, Restaurants, Shopping Malls, Banks,

Screen Dimension:

640*1920mm

Tube Chip Color:

Full Color

Brightness:

1200 Cd/m2

Warranty:

3~5 Years

Pixel Density:

16000dots/sqm

Highlight:

low power consumption led poster display

2.5mm led poster display

p3 led screen poster

Product Description

Low Power Consumption 2.5mm P2.5 LED Poster Display with Refresh Rate 3840Hz

Feature

HD Image Quality
Refresh rate up to 3840Hz;
Brightness at 1500nits, 3 times brighter than LCD display;
160°view angle;
High color reproduction;
Compare with indoor LCD poster, with high brightness, super thin & low-power consumption,
LED Digital poster is also suitable for bright occasion.

Product specification

Item	Technical parameter
Pixel Pitch	2.5mm
Module Resolution	128*64 dots
Module Size	320*160mm
Pixel configuration	1R1G1B
Module Chip	Kinglight/Nationstar
Driving Method	1/32Scan
Physical Density	160,000 dots/m2
LED Encapsulation	SMD2121
Module Port	BUH75
Module Consumption	≤16W
Brightness	1200 cd/m2
Cabinet Dimension	640*1920mm
Cabinet External Dimensions	7001980100mm
Cabinet Resolution	256*768 dots
Quantities of module	2*12
Cabinet Flatness	Tolerance of inter pixel ≤0.3mm
Cabinet Material	Aluminume,Iron
Cabinet Weight	38KG
Option Distance	2--80M
Viewing Angle	Horizontal 140° Vertical 120°
Max. Power consumption	675W/sqm
Driving Device	ICN2153IC
Frame Frequency	60Hz
Screen Flatness	Tolerance of cabinets ≤0.6mm
Refresh Frequency	1920Hz/3840Hz
Control Mode	Wifi asynchronization
Working Environment	Temperature -10℃~60℃ Humidity 10%~70%
Display Working Voltage	AC110V/220V , 50Hz/60Hz
Colour temperature	8500K-11500K
Communication distance	Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km
Gray scale	≥16.7M
MTBF	>10,000 hours
Support video source	HDMI, CVBS, SDI , DVI etc

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 0

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 1

Control Methods

Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 9

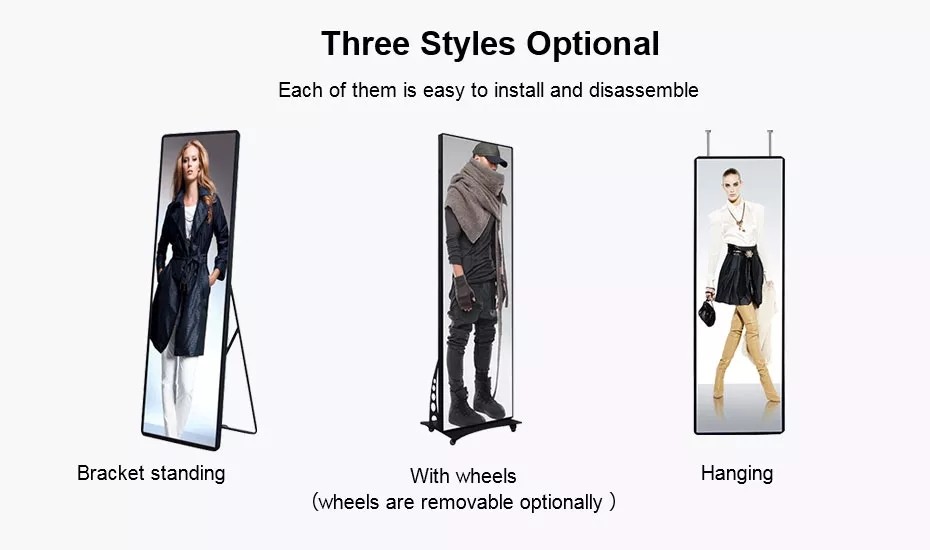

Multi-installation Method

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation

2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.

Tags:

Products

MOQ:	1 unit
Price:	Negotiable
Standard Packaging:	Flight case, Plywood case
Delivery Period:	10 working days after receiving the payment
Payment Method:	T/T, L/C, Western Union, MoneyGram
Supply Capacity:	10K sqm per month

Detail Information

Product Description

Detail Information

Place of Origin

Shen Zhen China

Brand Name

AVOE LED

Certification

CE RoHS

Model Number

AE-P2.5PLD

Name:

LED Poster Display

Resolution/mm:

2.5mm

LED Driving Method:

1/32 Scan

Application:

Hotels, Restaurants, Shopping Malls, Banks,

Screen Dimension:

640*1920mm

Tube Chip Color:

Full Color

Brightness:

1200 Cd/m2

Warranty:

3~5 Years

Pixel Density:

16000dots/sqm

Minimum Order Quantity:

1 unit

Price:

Negotiable

Packaging Details:

Flight case, Plywood case

Delivery Time:

10 working days after receiving the payment

Payment Terms:

T/T, L/C, Western Union, MoneyGram

Supply Ability:

10K sqm per month

Highlight

low power consumption led poster display

2.5mm led poster display

p3 led screen poster

Product Description

Low Power Consumption 2.5mm P2.5 LED Poster Display with Refresh Rate 3840Hz

Feature

Product specification

Item	Technical parameter
Pixel Pitch	2.5mm
Module Resolution	128*64 dots
Module Size	320*160mm
Pixel configuration	1R1G1B
Module Chip	Kinglight/Nationstar
Driving Method	1/32Scan
Physical Density	160,000 dots/m2
LED Encapsulation	SMD2121
Module Port	BUH75
Module Consumption	≤16W
Brightness	1200 cd/m2
Cabinet Dimension	640*1920mm
Cabinet External Dimensions	7001980100mm
Cabinet Resolution	256*768 dots
Quantities of module	2*12
Cabinet Flatness	Tolerance of inter pixel ≤0.3mm
Cabinet Material	Aluminume,Iron
Cabinet Weight	38KG
Option Distance	2--80M
Viewing Angle	Horizontal 140° Vertical 120°
Max. Power consumption	675W/sqm
Driving Device	ICN2153IC
Frame Frequency	60Hz
Screen Flatness	Tolerance of cabinets ≤0.6mm
Refresh Frequency	1920Hz/3840Hz
Control Mode	Wifi asynchronization
Working Environment	Temperature -10℃~60℃ Humidity 10%~70%
Display Working Voltage	AC110V/220V , 50Hz/60Hz
Colour temperature	8500K-11500K
Communication distance	Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km
Gray scale	≥16.7M
MTBF	>10,000 hours
Support video source	HDMI, CVBS, SDI , DVI etc

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 0

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 1

Control Methods

Low Power Consumption Led Poster Display 2.5mm P2.5 Refresh Rate 3840hz 9

Multi-installation Method

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation
