SMD1515 Shelf GOB LED Display P1.875 1R1G1B Full Color Ultra Thin Width

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P1.875
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Detail Information
Product: Shelf LED Display Pitch: 1.875mm
Color: Full-color,1R1G1B,full Color PixelDensity: 694444 Dots/sqm
Refresh Rate: 3840Hz Size: 600*60mm/900*60mm/1200*60mm
High Light:

SMD1515 GOB LED Display

,

Shelf GOB LED Display

,

P1.875 GOB LED screen


Product Description

P1.875 6.5WShelf GOB LED Panel 3840Hz refresh rate 800nits



Product introduction

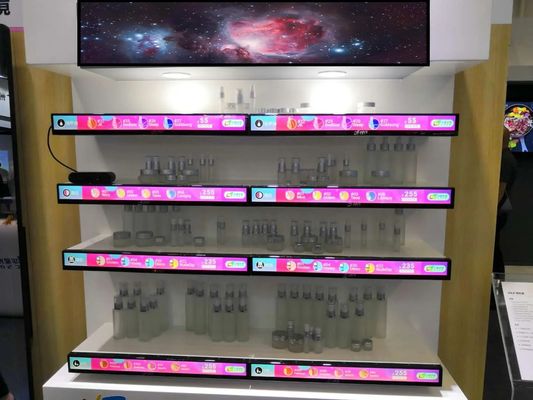

Shelf LED Display Screen including normal Shelf LED Display and shelf Header LED Display screen. Header shelf LED Display Screen install at the top of the shelf, wide display area can attract more customers' attention, it can bring more customers and profits. Multiple installation methods make installation more convenient.



Features:



• Ultra thin width, light weight, easy to install and move.



• Super simple installation, suitable for all stores.



• Plug in display, easy to operate.



• LAN Integrated publishing and remote publishing via the Internet.



•Various linkage modes, such as single screen application, cascade application, creative application, etc.



• USB / Wi Fi / HDMI / DVI / wired connection; fast management and release of mobile phone and PC.



• The calibration data is saved on the module and the factory settings are restored within 5 seconds.



Parameters:



Pixeltype 1.875mm
LED Encapsulation GOB
PixelConfiguration RGB
DrivingIC ICN2065+ICN2018
FreshFrequency ≥3840Hz
ModuleResolution 160*32Dots
ModuleSize 300mm*60mm
InputVoltage(DC) 4.2V
MaxVoltage 1.5A
ModuleMaxPower 6.5W
Drivingmethod 1/45
Horizontalviewingangle ≥170(±10°)
Verticalviewingangle ≥170(±10°)
Brightness 400~600CD/m2
GrayLevel >14bit
FreshFrequency ≥3840Hz
CabinetResolution 320*32/ 480*32 / 640*32
PixelDensity(dot/㎡) 285156Dots/㎡
CabinetSize 300*60mm / 600*60mm /900*60mm
MTBF ≥100000Hours
LifeSpan ≥50000Hours
Pixeluncontrolledrate 0.3‰
HUB 1EA/ 1EA / 2EA
PowerSupply DC5VTheExternalpowersupply
WorkCondition INDOOR
Temperatureoperating -40to60℃
Humidityoperating 10%to90%RH
StorageTemperature 0to40℃
StorageHumidity 40%to60%RH


How to Select Shelf LED Display



Location-indoor,outdoor or semi-outdoor



Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.



Size,Shape and Pitch



Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.



Shape:determines if curve or column or flat screens are required.



Pitch:determines the contents of the display and the range of viewing.



LED Facing Direction



Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.



Selecting Your LED Supplier



For shop:

Attract and delight customers attention. Implement efficient operation for supermarket. Low down labor cost of changing paper labels.



For ads agency: Innovative Ads media, attracting more attentions.

Easy installation, no need for heavy steel construction and no need government released approvement.



Higher ROI (Return of investment)



Based on COB/LED technology: Providing more on-the-spot product information for customers.Offers a more engaging experience for our customers at the shelf.



Widely Application:



Supermarket, Club, Retails perimeter, retails shop, fashion shop and so on.



Vivid digital display with roll advertising. Attract and delight customer attention.Implement efficient operation for supermarket.
