P2mm LED Video Display 320*160mm Indoor Seamless HD LED Screen

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P2IFRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fine Pitch LED Display Pixel Pitch 2mm
LED Type SMD1515 Module Size 320*160mm
Density 250000 Dots/㎡ Application Control Rooms, Broadcasting Studios, Meeting & Training Room
Usage Indoor Tube Chip Color Full Color
Display Function Video,picture,Text,Graphics,animation Brightness 800-1200cd Adjust
Warranty 5 Years Life Span 100000 Hours
Cabinet Material Die-casting Aluminum Best Viewing Distance 2~40m
High Light

P2mm LED Video Display

,

320*160mm LED Video Display

,

SMD1515 P2 Indoor LED Screen

Leave a Message
Product Description

P2mm LED Video Display 320*160mm Indoor Seamless HD LED Screen



P2 LED video display 45 degree angle 320*160mm Seamless 160° View Angle HD LED Screen

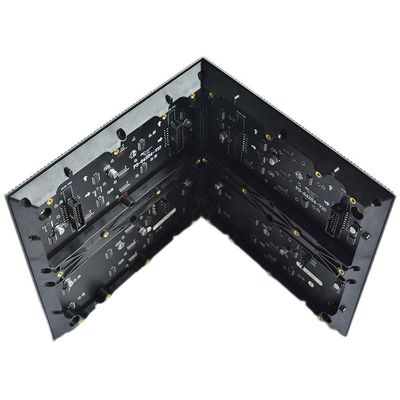

LED Module 45 degree angle sides Seamless



45 Degree Angle Corner LED Module



P2 45-degree angle 320*160mm



P2.5 45-degree angle 320*160mm



P3 45-degree angle 192*192mm



P4 45-degree angle 256*128mm or 320*160mm



P5 45-degree angle 320*160mm



The 45-degree LED module is mainly used to make 90-degree LED Display screens.



The difference between the 45-degree angle LED module and the conventional module is that the 45 degree LED module kit adopts a 45-degree frame design, and the two modules are assembled at 90 degrees directly, which is simple to achieve seamless splicing.



The 45-degree LED Module is used for pillar screens, cube screens and other LED displays that require a 90-degree right angle.



The flatness of the surface of the display screen can be controlled within ±1mm.



Feature



1. UHD P2 has exceptional display quality even when brightness is reduced to 20%.The so-called seamless, thinnest, super-thin and barely seamless marketing can never change the fact that there are still gaps between cabinets, while PROLED’s fast-connector makes the real seamless splicing possible.



2. 640mm*480mm cabinet. Ultra slim and light cabinet is specially designed for conference system,all wall-mounted methods.Die cast aluminum cabinet, guarantee you a flat and seamless screen.Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.



3. Modular design. Efficient and low cost installment and maintenance. Patented cooling system, fanless, non-noise, energy-saving and eco-friendly.High reliability. Redundant N+1 power system, dual signal hot backup. Auto-switch and warn malfunction.



4. Vertical/horizontal: 160°/160°, broadcast-level color gamut, CT and brightness adjustable,more appropiate for long-time watching.


Application:


State-of-the-art and upgraded Fine Pitch LED Display solutions will enable novel applications in a wide range of fields, including control rooms, broadcasting studios, meeting & training rooms, museums, college campuses, brand retails, shopping malls, cinemas, hotels, sports bars, airports, and houses of worship, etc.







Product specification

GOB LED Display Series



Pitch(mm) 1.25mm 1.538mm 1.667mm 1.86mm 2mm 2.5mm
LED Type SMD1010 SMD1010 SMD1212 SMD1515 SMD1515 SMD2121
Color 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module size 320*160 mm 320*160 mm 320*160 mm 320* 160mm 320*160 mm 320*160 mm
Resolution 256*128 Dots 208*104 Dots 192*96 Dots 172*86 Dots 160*80 Dots 128*64 Dots
Density 640000pixel/㎡ 426800pixel/㎡ 360000pixel/㎡ 288700pixel/㎡ 250000pixel/㎡ 160000pixel/㎡
Refresh rate > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz
Brightness > 500 cd/㎡ N 500 cd/㎡ > 600 cd/㎡ > 600 cd/㎡ > 800 cd/㎡ > 800 cd/㎡
Frame rate 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ
View angle H:160 , V:160 H:160 ,V:160 H:160 , V:160 H:160 ,V:160 H:160 ,V:160 H:160 ,V:160
Cabinet size 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm
Resolution 512*384 Dots 416*312 Dots 384*288 Dots 344*258 Dots 320*240 Dots 256*192 Dots
Materials Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Weight 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg
IP Level IP54 IP54 IP54 IP54 IP54 IP54




*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for details. All rights are reserved to AVOE.
