P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P2.5IFRGB
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Detail Information
Name: Fine Pitch LED Display Pixel Pitch: 2.5mm
LED Type: SMD2121 Module Size: 320*160mm
Density: 160000 Dots/㎡ Application: Control Rooms, Broadcasting Studios, Meeting & Training Room
Usage: Indoor Tube Chip Color: Full Color
Display Function: Video,picture,Text,Graphics,animation Brightness: 800-1200cd Adjust
Warranty: 5 Years Life Span: 100000 Hours
Cabinet Material: Die-casting Aluminum Best Viewing Distance: 2~40m
High Light:

IP54 Fine Pitch LED Display

,

P2.5mm Fine Pitch LED Display

,

IP54 P2.5 LED Module


Product Description

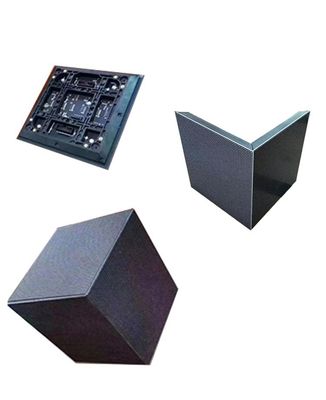

P2.5 LED Module GOB IP54 Fine Pitch LED Display Sides Seamless



P2.5 LED Module 45 degree angle sides Seamless 160° View Angle HD LED Screen



Feature

1. UHD P2.5 has exceptional display quality even when brightness is reduced to 20%.The so-called seamless, thinnest, super-thin and barely seamless marketing can never change the fact that there are still gaps between cabinets, while PROLED’s fast-connector makes the real seamless splicing possible.



2. 640mm*480mm cabinet. Ultra slim and light cabinet is specially designed for conference system,all wall-mounted methods.Die cast aluminum cabinet, guarantee you a flat and seamless screen.Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.



3. Modular design. Efficient and low cost installment and maintenance. Patented cooling system, fanless, non-noise, energy-saving and eco-friendly.High reliability. Redundant N+1 power system, dual signal hot backup. Auto-switch and warn malfunction.



4. Vertical/horizontal: 160°/160°, broadcast-level color gamut, CT and brightness adjustable,more appropiate for long-time watching.


Application:
State-of-the-art and upgraded Fine Pitch LED Display solutions will enable novel applications in a wide range of fields, including control rooms, broadcasting studios, meeting & training rooms, museums, college campuses, brand retails, shopping malls, cinemas, hotels, sports bars, airports, and houses of worship, etc.



Product specification

GOB LED Display Series



Pitch(mm) 1.25mm 1.538mm 1.667mm 1.86mm 2mm 2.5mm
LED Type SMD1010 SMD1010 SMD1212 SMD1515 SMD1515 SMD2121
Color 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module size 320*160 mm 320*160 mm 320*160 mm 320* 160mm 320*160 mm 320*160 mm
Resolution 256*128 Dots 208*104 Dots 192*96 Dots 172*86 Dots 160*80 Dots 128*64 Dots
Density 640000pixel/㎡ 426800pixel/㎡ 360000pixel/㎡ 288700pixel/㎡ 250000pixel/㎡ 160000pixel/㎡
Refresh rate > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz
Brightness > 500 cd/㎡ N 500 cd/㎡ > 600 cd/㎡ > 600 cd/㎡ > 800 cd/㎡ > 800 cd/㎡
Frame rate 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ
View angle H:160 , V:160 H:160 ,V:160 H:160 , V:160 H:160 ,V:160 H:160 ,V:160 H:160 ,V:160
Cabinet size 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm
Resolution 512*384 Dots 416*312 Dots 384*288 Dots 344*258 Dots 320*240 Dots 256*192 Dots
Materials Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Weight 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg
IP Level IP54 IP54 IP54 IP54 IP54 IP54




*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for details. All rights are reserved to AVOE.



Pictures



P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 0P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 1P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 2P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 3P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 4P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 5

P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 6P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 7P2.5 LED Module GOB IP54 Fine Pitch LED Display sides Seamless 8



Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
