P2.5 Indoor Rental LED Display 320x160mm advertising display screen

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P2.5
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Indoor Rental GOB LED Display Pixel Pitch P2.5
Pixel Density 160000dots/sqm LED Specification SMD2121
Moudle Size 320X160mm Application Stage, Concert, Live On TV, Wedding, Conference, Ceremony Gala, Exhibition Presentation
Usage Indoor Tube Chip Color Full Color
Display Function Video,Picture.Animation,Image,Animation,graphics Warranty 3 Years
Life Span 100000 Hours Cabinet Size 640x480x77mm
Cabinet Weight 7.5KG/cabinet Refresh Rate 1920/3840
High Light

P2.5mm Indoor Rental LED Display


SMD2121 Indoor Rental LED Display


SMD2121 Advertising Display Screen

Leave a Message
Product Description

P2.5 Indoor Rental LED Display 320x160mm Advertising Display Screen


P2.5 GOB LED Screen 320x160mm module moisture-proof, waterproof, dust-proof, impact-proof, UV-resistant



GOB indoor SMD P2.5
Lamp size SMD2121
Resolution/mm 2.5
Pixel configuration RGB 3 in 1
Pixel density/pixels/SQM 160000/㎡
Module resolution 128x64
Module size/mm 320x160
View distance ≥1m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimode fiber: 500m, monomode fiber: 5km
Driving mode Constant driving current
Scanning mode 1/32
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, step-less continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power / ㎡ <800W
Average power / ㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment Windows series, Windows XP
Luminous point width between centers Deviation<3%
Brightness uniformity <10%
Color uniformity(chromatically coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moisture-proof, dust-proof, high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

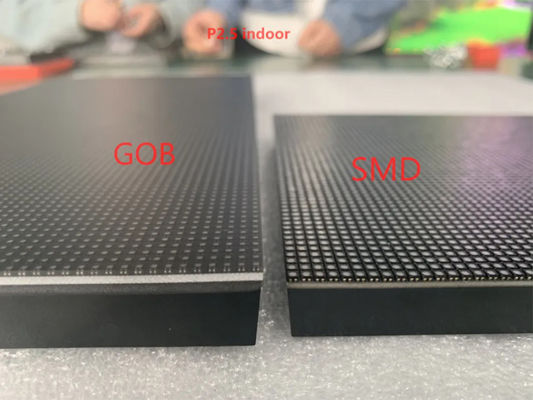

GOB is an abbreviation of Glue On Board, It is a new encapsulation technology of LED display module. which uses the most advanced transparent material to package the substrate and its LED packaging unit to form effective protection. This material not only has super high transparency performance, but also has super thermal conductivity. This technology can solve the problems of LED lamp protection. GOB products use self-developed transparent glue material to encapsulate the substrate and its LED packaging unit to from effective protection. GOB technology made LED display screen become be touched, moisture resistance waterproof, dust-proof, impact resistance and anti-collision. It is possible for the LED display to use various harsh environments.


GOB small pitch LED Display can be adapted to any harsh environment, realizing the characteristics of moisture-proof, waterproof, dust-proof, impact-proof, UV-resistant, etc. GOB display products are generally aged for 72 hours before the product is assembled, and the lamps are tested. After pouring, aging for another 24 hours, reconfirm the product quality.


1. Classical design and natural tech, reliable quality and great performance.
2. Seamless connecting tech., screen flatness error <0.1mm.
3. Patented mask, eliminating the dark spots, improving consistency and viewing angle.
4. High contrast, ideal gray scale, presenting the most real pictures.
5. Supporting brightness and color correcting of the whole screen.
6. Ideal load of power and parameter setting, make screen under the best working condition,
moreover, furthest slow down brightness and color reduction.




Used for KTV, bar, stage background video wall, commercial advertising display in Retail chain store, Brand shop, Clothing Stores, metro station, airport, hotel, bank, supermarket, pharmacies, duty free zones.


P2.5 Indoor Rental LED Display 320x160mm advertising display screen 0P2.5 Indoor Rental LED Display 320x160mm advertising display screen 1P2.5 Indoor Rental LED Display 320x160mm advertising display screen 2P2.5 Indoor Rental LED Display 320x160mm advertising display screen 3

P2.5 Indoor Rental LED Display 320x160mm advertising display screen 4


P2.5 Indoor Rental LED Display 320x160mm advertising display screen 5



GOB LED Display Series

Pitch(mm) 1.25mm 1.538mm 1.667mm 1.86mm 2mm 2.5mm
LED Type SMD1010 SMD1010 SMD1212 SMD1515 SMD1515 SMD2121
Color 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module size 320*160 mm 320*160 mm 320*160 mm 320* 160mm 320*160 mm 320*160 mm
Resolution 256*128 Dots 208*104 Dots 192*96 Dots 172*86 Dots 160*80 Dots 128*64 Dots
Density 640000pixel/㎡ 426800pixel/㎡ 360000pixel/㎡ 288700pixel/㎡ 250000pixel/㎡ 160000pixel/㎡
Refresh rate > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz > 3840Hz
Brightness > 500 cd/㎡ N 500 cd/㎡ > 600 cd/㎡ > 600 cd/㎡ > 800 cd/㎡ > 800 cd/㎡
Frame rate 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ
View angle H:160 , V:160 H:160 ,V:160 H:160 , V:160 H:160 ,V:160 H:160 ,V:160 H:160 ,V:160
Cabinet size 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm 640*480*60mm
Resolution 512*384 Dots 416*312 Dots 384*288 Dots 344*258 Dots 320*240 Dots 256*192 Dots
Materials Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Weight 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg
IP Level IP54 IP54 IP54 IP54 IP54 IP54
P2.5 Indoor Rental LED Display 320x160mm advertising display screen 6
