P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P10DIP
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Outdoor Fixed LED Display Pitch 10mm
Pixel Density 10000 Dots/sqm Brightness 8000cd/sqm
Pixel Configuration 1R1G1B Module Dimension 320*320mm
Cabinet Size 960x960mm LED DIP
LED Brand Nationstar Color RGB,Full-color,16.7M,1R1G1B
High Light

P10 Outdoor Fixed LED Display

,

320x320mm Outdoor Fixed LED Display

,

320x320mm Front Maintenance LED Module

Leave a Message
Product Description

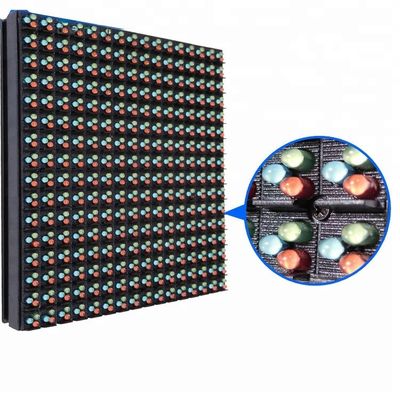

P10 Outdoor Fixed LED Display 320x320mm Front Maintenance LED Module



8000nits P10 Outdoor Fixed DIP AVOE LED Display Screen Front maintenance LED Module 320x320mm



Features:


Display contents real-time updates, high brightness, high definition, size and shape can be designed upon client's actual requirement, exquisite, vivid display effects, big viewing angle etc.
The full color LED Display has brought us a colorful world, LED display attract more viewers for less cost than other standard media using targeted messages that capture your audience with light, motion and color.



Widely applications:


Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.



Parameters

Resolution/mm 10mm
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32*32
Module size/mm 320*320
View distance 9-400m
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances CAT6 cable:<100 m; Single mode fiber:<10 km
Driving mode Constant driving current
Scanning mode 1/4 scan
Frame rate 60Hz
Refresh frequency >2880Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment Windows (2007/XP/Vista/7/8/10)
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moisture-proof, dust-proof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 0

P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 1

P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 2P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 3P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 4

P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 5
P10 Outdoor Fixed LED Display 320x320mm Front Maintenance AVOE LED Module 6
