P4 SMD1921 5500nits digital AVOE LED advertising board 960*960mm Cabinet
| Place of Origin | Shen zhen China |
|---|---|
| Brand Name | AVOE LED |
| Certification | CE RoHS |
| Model Number | AE-P4OFRGB |
| Minimum Order Quantity | 5sqm |
| Price | Negotiable |
| Packaging Details | Flight case, Plywood case. |
| Delivery Time | 10 working days after receiving the payment |
| Payment Terms | T/T, Western Union, MoneyGram, L/C |
| Supply Ability | 10K sqm per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Outdoor Fixed LED Display Board | Resolution/mm | 4mm |
|---|---|---|---|
| Pixel Density/pixels/m² | 40000dot/m² | Brightness( Nits /m² ) | 7000 |
| Refresh Rate | ≥1920Hz | IP Rating | IP65/IP54 |
| Cabinet Size | 960*960mm | Color | Full-color,1R1G1B |
| High Light | 5500nits Digital LED Advertising Board,SMD1921 Digital LED Advertising Board,5500nits LED Video Wall Panels |
||
Product Description
P4 SMD1921 5500nits Digital LED Advertising Board 960*960mm Cabinet
AVOE LED wall screen display outdoor P4 SMD1921 Cabinet 960*960mm 5500nits
Features
1. Waterproof, and great heat dissipation.
2. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
3. Big viewing angle to 120 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
4. To pictures and character, have clear, exquisite and real display effect.
5. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
6. Clear Vivid Image Quality: even in direct , full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment
Application:

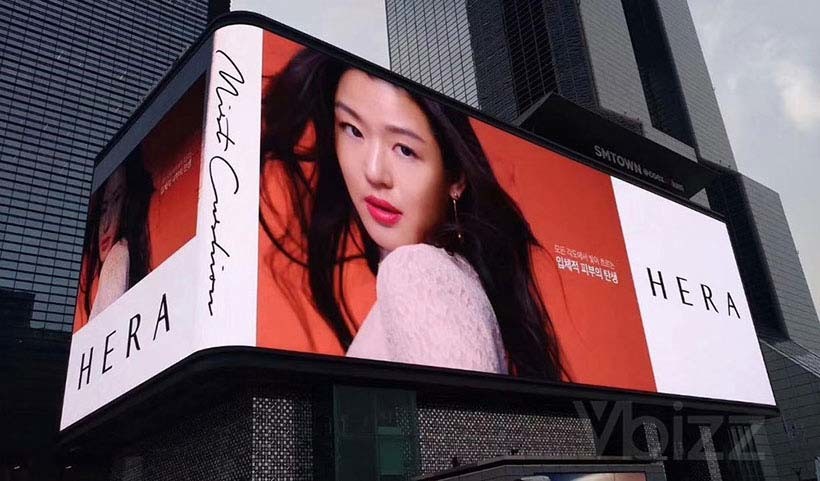

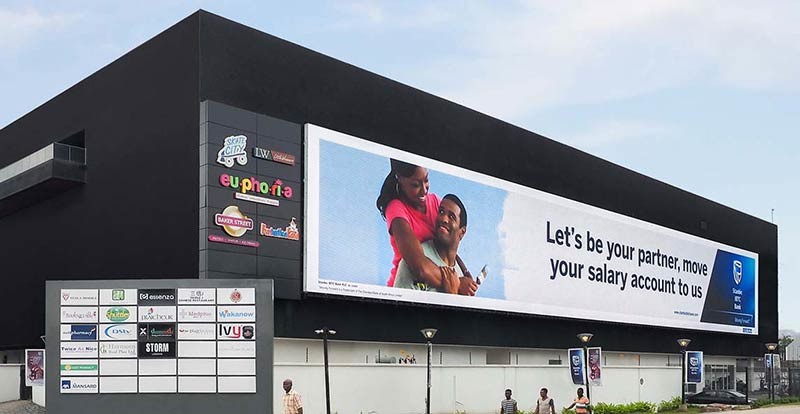

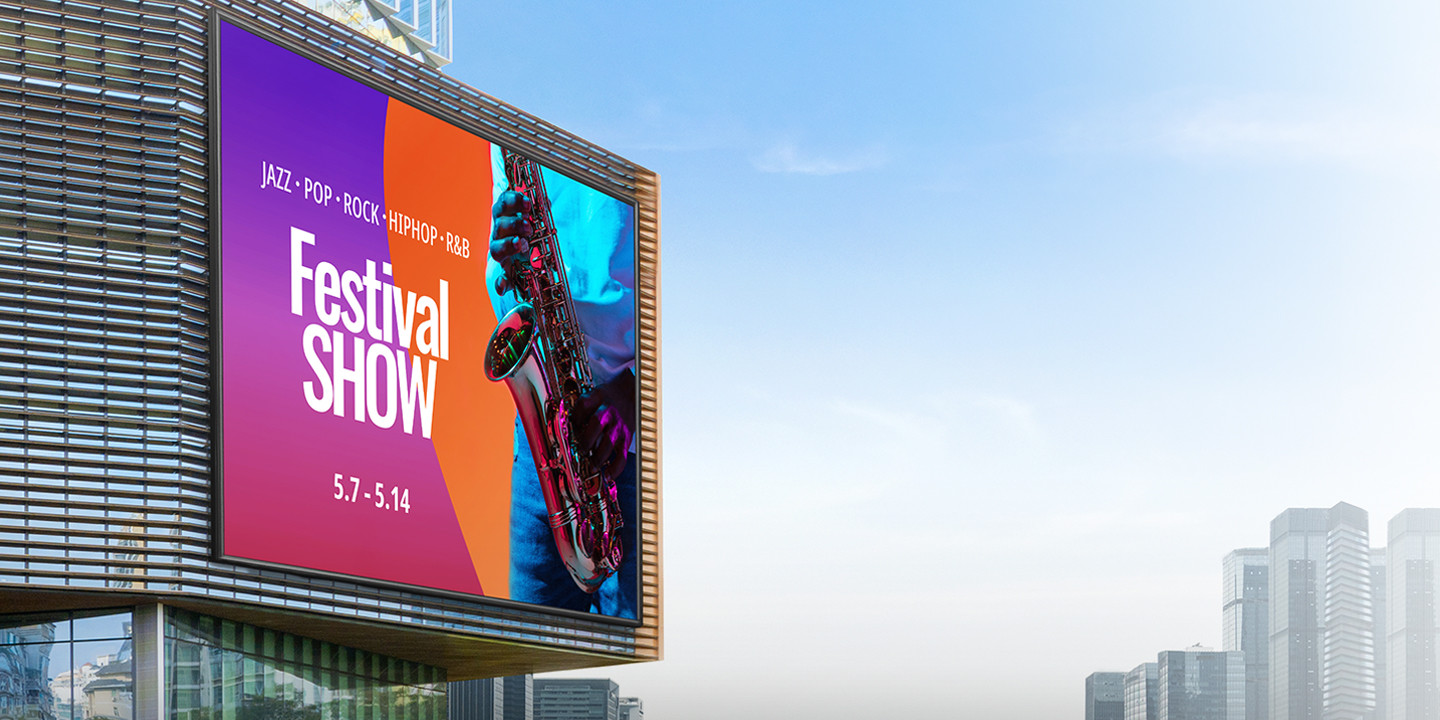

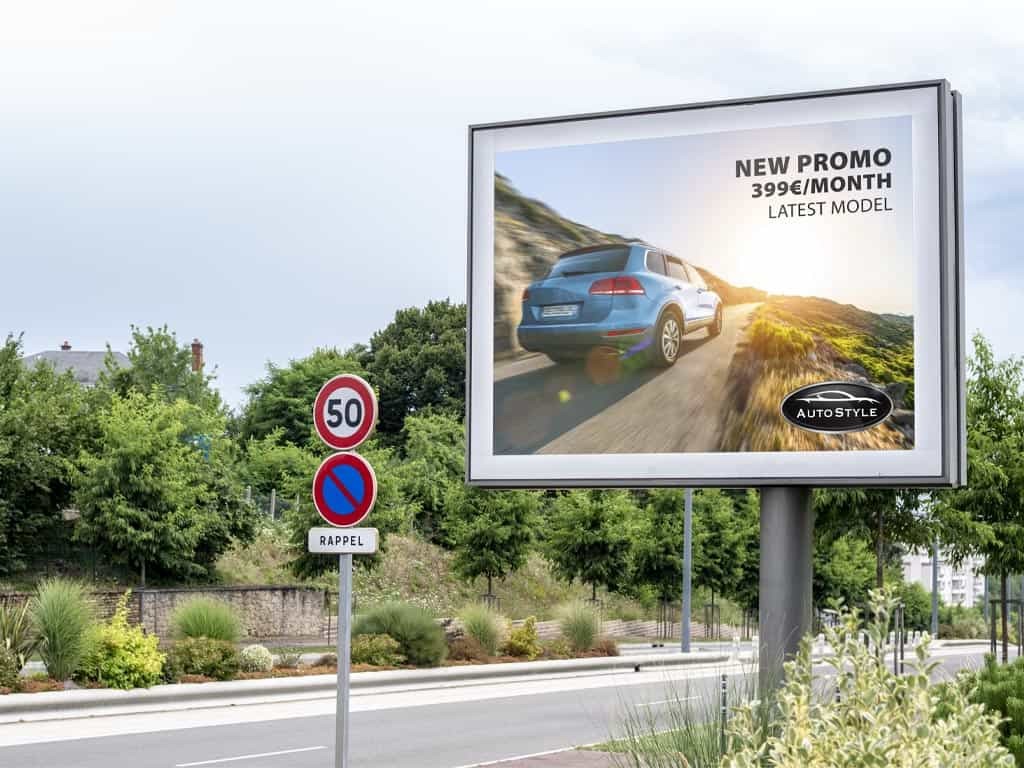

Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other outdoor rental events.
Product Specification:
| Specification of P4 Outdoor Fixed AVOE LED Display | |||||
| Module | |||||
| Dimention (w*h) | 320mmx160mm | Resolution (w x h) | 80x40 | ||
| Pixel pitch | 4mm | Pixel Density | 62500 dots/㎡ | ||
| Pixel Configration | RGB 3-in-1 | LEDs Type | SMD1921 Nationastar Brand | ||
| Cabinet | |||||
| Dimensions(w* h)(mm) | 960*960mm | Module Quantity(PCS) | 18 | ||
| Physical Resolution (w x h) | 240*240 | Physical Pixels (total) | 57600 | ||
| Weight/Cabinet (kg) | 45kg | Material | Steel metal | ||
| Average Power/㎡(watts) | 300W | Max Power/㎡(watts) | 950W | ||
| Parameter | Value | ||||
| Brightness | ≥ 4500 cd/㎡ | ||||
| Viewing Angle | Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg. | ||||
| Best Viewing Distance | 5-200meters | ||||
| Brightness Control | 256 level | ||||
| Gray scale | 14bits | ||||
| Refresh frequency | ≥ 1920Hz | ||||
| Driving mode | 1/10 scan constant current driving | ||||
| Input power frequency | 50/60 Hertz | ||||
| Input Voltage | AC/220 ～ 240 Volt | ||||
| Blind spot rate | ＜1/10000 | ||||
| Lifetime at 50% brightness | 100000 hours | ||||
| Ingress Protection | IP65/IP54 | ||||
| Operating temperature | ﹣20 ～﹢50 ℃ | ||||
| Operating humidity | 10％ ～ 90％ | ||||
| Control distance | CAT6 cable:＜100 m; Single mode fiber:＜10 km | ||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Operating system | Windows (2007/XP/Vista/7/8/10) | ||||
