Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Outdoor Transparent LED Screen Cabinet Material Die-casting Aluminum
Transparency 70% Display Function Video,Animation,Graphics,Animation/ Graphics/ Video,Video/Image
Usage Indoor,Outdoor Pixels 3.91-7.81mm
Brightness ≥5000nits Warranty 5 Years
Led Chip Nationstar SMD1921 Life Span 100000 Hours
Color Full-color,1R1G1B,Color RGB Curtain Display Cabinet Size 1000x500mm Or 1000x1000mm
Viewing Angle 140 Degree /140 Degree Refresh Rate 3840Hz
High Light

P7.8 Transparent Glass LED Display


P3.9 Transparent Glass LED Display


P7.8 Outdoor Transparent LED Screen

Leave a Message
Product Description

Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall


1000x500mm cabinets IP65 outdoor transparent AVOE LED screen 5500nits P3.9-7.8 for shopping mall


Outdoor transparent LED screen waterproof IP65, to use in the extremely environment, realizing the exact waterproof, moisture-proof, anti-collision, anti-UV, anti-dust, avoid the LED lens dropping phenomena.


Key Features:


1. Waterproof IP65, enable to use in outdoor and indoor various environment conditions.

2. Edge protection design avoid LED collision for longer lifespan.

3. High protective against collision, statics, collision, moisture, dust etc, better ensurance for long time usage.

4. Easy and quick for installation and maintenance. Standardized die-cast aluminum design with quick locks and connectors for fixed and rental installations. Light weight, Ultra-slim, etc.

Outdoor transparent LED display that can be placed in or outside a glass window without sacrificing natural light in your space.

Additional benefits include creative and artistic applications, while meeting security codes and regulations.

Outdoor Rated, All-weatherproof Rated

A reliable solution for both indoor and outdoor environment, ensures trouble-free operation even in extreme temperatures and weather.


Brightness : 5000 cd/m²

Cabinet Size:1000×500 mm

Cabinet weight: 15KG

- High transparency with more 70% transparency rate for front and back
- Fast maintenance design, Wide Viewing angle
- High Brightness, Noiseless working
- Good daylighting and delicate decoration
- Light, thin, strong structure
- Fast Installation in 10 seconds to finish
- Fast lock for cabinet connection
- Ultra thin and light weight for transport.
- Standard cabinet size 1000*500mm.
- Super slim design thickness
- No need to change any building structure for installation.




Pixel Pitch 3.9-7.8mm 5.2-10.4mm 10.4mm 15.6mm
Encapsulation brand NationStar
LED lamp bead model SMD1912 SMD1921 SMD2727 SMD2727
Pixel composition 1R1G1B
Module Resolution(W*H) 128x32 dot 96x24 dot 48x24 dot 32x16 dot
Module Size(W*H) 500x250mm
Module Fixed Way Front & Real Access (Screw)
Cabinet Resolution(W*H) 256x64 dot 192x48 dot 96x48 dot 64x32 dot
Cabinet Size(W*H*D) 1000x500mm
Module arrangement(W*H) 2x2
Cabinet Weight (kg/㎡) 15kg
Cabinet Material Aluminum Die-casting
Flatness between modules <0.1mm
Maintenance Way Front / Rear Access
Density of Pixel (dots/㎡) 32768 18432 9216 4096
Brightness(cd/㎡) 4500 4500 4500 6500
Viewing angle 140°/140°
Transparency rate 65% 68% 68% 75%
Contrast 6000:1
Protection level IP65
Gray scale 16bit
Chromaticity uniformity ±0.003 within Cx,Cy
Scan mode 1/8 1/4 1/2 Static
Frame change frequency 60
Refresh rate <3840
Color temperature 2000K 〜9500K
Operating platform Windows XP/7/8/10
Signal Input HDMI,DVI
Operating Voltage AC: 11OV~24OV, 50~60Hz
Maximum Power (W/㎡) 800
Average power (W/㎡) 240
Continuous working time >7x24hrs
Service life 100000Hours
Operating environment 0℃-40℃, 35%〜85%RH




Trade display windows and pubic building space

Glass curtain wall gain a good space visual effect indoor, such as in chain store, shopping mall,exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc. which brings strong visual impact and sense of hierarchy for LED transparent display.

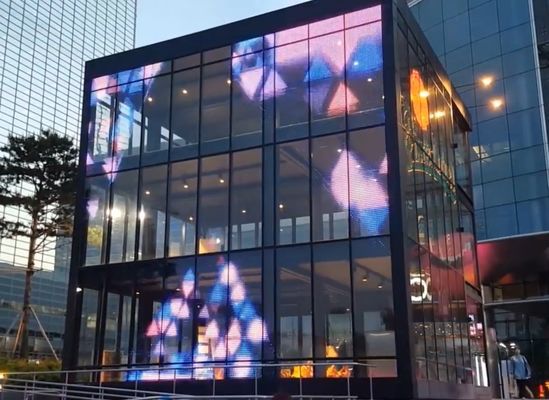

Large building glass curtain wall

With high transparent effect and showing in lively HD and holographic effect as well as intelligent interactive function, the application of large building glass curtain wall achieved in mixing harmonious and innovative display effect without changing any building structure.


Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 0


Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 1


Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 2



Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 3Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 4

Outdoor P3.9 P7.8 Transparent Glass AVOE LED Display For Shopping Mall 5

-Full LED encapsulation, IP65 Waterproof Dustproof Anti-collision.

-60%-95% transmittance, seamless connection.

-Super slim and slight, easy window installation.

-Energy conservation, material heat dissipation.

-Neat frame, front and rear access.

Stacking, Hoisting installation.
