1R1G1B Indoor LED Display Screen 1000nits 192×192mm Module For Advertising

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-INP3
Minimum Order Quantity 1 sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10K sqm per month
Product Details
Name Indoor Led Screen Pitch 3mm
Pixel Density 111111 Dots/sqm Brightness 1000cd/sqm
Usage Indoor Advertising Color 1R1G1B
Display Function Video,text,message,image,picture Warranty 3~5 Years
Led Chip Kinglight Module Size 192x192mm
Life Span 100000 Hours Application Indoor Advertising,video Commercial Ad,publicity
Product Name Led Video Display Panel Refresh Rate 3840Hz,≥1920 Hz
Power Supply Meanwell
High Light

1R1G1B Indoor LED Display Screen

,

Indoor LED Display Screen 1000nits

,

192×192mm Indoor Advertising LED Display

Leave a Message
Product Description

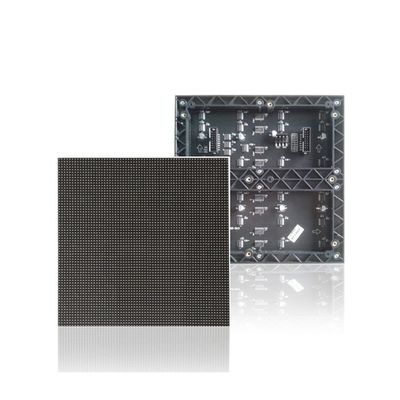

P3 indoor LED display screen For Advertising 192*192mm module size 1000nits



Features:

  • Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
  • Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.
  • Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively.
  • The effect of the display will be more clear and exquisite.
  • Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful
  • Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
  • Full compatible: new structure design which can demand the indoor displays’ require.

Parameters:

Model No. P3 P3.076
Pixel Pitch (mm) 3 3.076
LED Configuration SMD2121 SMD2121
Module Size (mm) 192*192 320*160
Resolution(dot) 64*64 104*52dot
Pixel Density(dot/㎡) 111111 105688
IP Rating IP30 IP30
Scanning Mode 32S 26S
Brightness CD/㎡ 1000 1000
Viewing Angle 160°/ 140°(H/V) 160°/ 140°(H/V)
View Distance >3m >3m
Gray 14bit 14bit
Color 16.7M 16.7M
Max/Ave Consumption(W/㎡) 550/200 460/160
Refresh Rate(Hz) ≥1920 ≥1920
Gamma Coefficient -5.0~ + 5.0 -5.0~+5.0
Application Environment Indoor Indoor
Brightness Adjustment 0-100 levels adjustable
Control System Synchronous display with control PC by DVI
Video Format Composite, S-Video,Component, VGA. DVI, HDMI, HD_SDI
Power AC100~240 50/60HZ
Working Temperature -20°C~+50°C
Working Humidity 10~95% RH
Life Span 50,000hours



Widely applications:
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.
