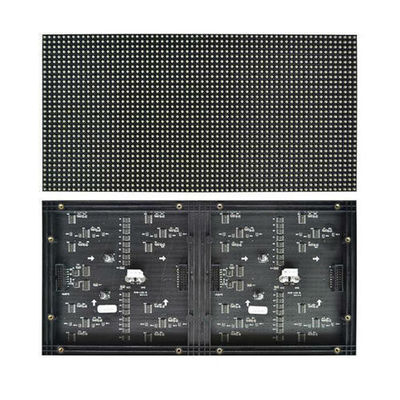

1000nits Indoor Fixed LED Module 320 x160mm 1200cd/Sqm Led Video Display Panels

MOQ: 5sqm
Price: Negotiable
Standard Packaging: Flight case, Plywood case
Delivery Period: 10 working days after receiving the payment
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10K sqm per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shen Zhen China
Brand Name
AVOE LED
Certification
CE RoHS
Model Number
AE-P5IF
Name:
Indoor Led Screen
Pixels:
5mm
Display Function:
Module Size:
320mmx160mm
Application:
Indoor Advertising
Color:
Full-color
Usage:
Indoor
Brightness:
1200cd/sqm
Warranty:
3~5 Years
Led Chip:
Kinglight
Module Size:
320x160mm
Life Span:
100000 Hours
Product Name:
Led Video Display Panel
Scan Mode:
1/16 Scan
Refresh Rate:
3840Hz,≥1920 Hz
Power Supply:
Meanwell
Highlight:

1000nits Indoor Fixed LED Module

,

Indoor Fixed LED Module 32x160mm

,

1200cd/Sqm Led Video Display Panels

Product Description

P5 indoor full color led display With 32x160mm LED module Easy Installation 1000nits



Parameters




Pixel Pitch(H/V) 5mm
Module Size 320 x160mm
LED Type SMD2121
Pixel / module 64*32
Module Weight 0.3kg
Pixel/sqm 40000 pixels
Viewing Angle(H/V) 160° / 140°
Application Storage-40~60°C, Working-20~50°C
Protection Level IP30
Power Consumption(AVG.) 180w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate >1920Hz
Processing 16bit
Max Brightness >1000nits
Driving Method 1/16 scan
Power Supply AC110/240V, 50~60Hz
MTBF ≥1000 Hours
Life Span ≥100000 Hours
Pixel Failure <0.0003







Feature:

  1. Silent operation with widely viewing angle give you all-around visual enjoyment.
  2. Little attenuation and good heat dissipation protect the product at an large extent.
  3. Driving IC: making the defective phenomena, such as dark bright, virtual light avoidable.
  4. The voltage fluctuation range is less than 5% and the stability is high.
  5. Connector: Ensuring the stable transmission of power and signal.
  6. Easy installation: 100 pieces of cabinets' installation can be finished in one hour by one person.
  7. The replacement of any cabinet can be done within 50 seconds.
  8. This indoor led dancing floor support for interactive function when you touch it by your foot. And all the material is anti-skid and durable to protect dancers and the screen from damage.
