RGB SMD3535 P8 8000nits Outdoor Fixed LED Display 1R1G1B IP20

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P8
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fixed Full Color LED Display Pixel Pitch 8mm
Pixel Compose 1R1G1B LED Assembly Type SMD
Module Pixel 40*20 Module Size 320x160mm
Cabinet Size 960x960mm
High Light

SMD353 Outdoor Fixed LED Display

,

8000nits Outdoor Fixed LED Display

,

1R1G1B Outdoor Smd Led Display

Leave a Message
Product Description
RGB SMD3535 P8 Outdoor Fixed LED Display 8000nits LED outdoor display screen Easy Maintenance

Parameters

Pixel Pitch: 8mm
Pixel Compose: 1R1G1B
LED assembly type:SMD
Module Pixel: 40*20
Module size: 320x160mm
Cabinet size:960x960mm
Lattice Density: 15625 dots/?O
Cabinet weight: 40KG
Best Viewing Distance:20m
Viewing distance::10~50m
Max. power consumption:900W/sqm
Average power consumption:300W/sqm
Viewing angle: Horizontal 110 Vertical :40
Brightness: 8000cd/sqm
Grey Scale: 16.7M
Refresh frequency: 1920HZ
Ambient temperature:-20+50
Humidity:10%~90%
Working voltage: AC100~240V
MTBF: >10000hours
Uncontrolled Pixel Ratio:<1/10000
Intelligent Control:Remotely controlled by computer
Input Signal:Standard computer and video signal
Control System Mode: synchronous or asynchronous display (as application of the display)
LED drive mode:Constant current, 1/8 scan
Effective control distance: Wihin 100 meters using CAT5, Optic Fiber increase the distance to 1000m
System operating platform: Windows 98,2000 and XP
Display Interface:DVI
Panel input format(with video processor): VGA,DVI,RGBHV,PbPr(HDTV),Co mposite,S-Video,TV
Software:LED Studio
Waterproof:IP20
Warranty:24 months

RGB SMD3535 P8 8000nits Outdoor Fixed LED Display 1R1G1B IP20 0RGB SMD3535 P8 8000nits Outdoor Fixed LED Display 1R1G1B IP20 1RGB SMD3535 P8 8000nits Outdoor Fixed LED Display 1R1G1B IP20 2
Features:
1) Reliable quality, advanced and mature technology, compliant with industrialstandards and technology developing trend
2) Better viewing effect
3) The effect of heat emission is good, and the performance is stable
4) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal
5) High resolution and definition of screen image, clear and non-flash screen image
6) Supports video and radio frequency input, special structure can be freely assembled
7) Low cost of operation
8) Short leading time
9) Easy maintenance

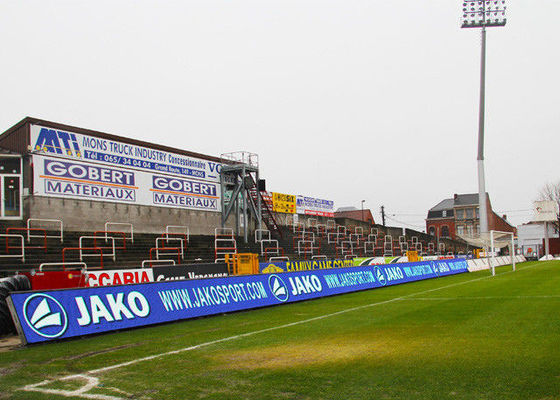

10) Widely used in stadium, bank, restaurant, train and bus station, shopping center,government, schools, entertainment, enterprise, wharfs, airports, emporiums, hospitals, hotels, stock exchanges, construction markets, auction houses, corporate management and other public places,advertising, leasing biz,
large scale sports stadiums, waiting room of railway station, live TV programs, exhibition facilities, artistic centers, entertainment locations, large scale artistic ceremonies, live concerts etc

Note:
Indoor LED Display design for indoor video advertising use, the important feature for this products is it can be view with very nearly distance even only 1 meter, and it must be very big view angle up to 140 , so all of our indoor LED display screen are use SMD 3 in 1 of LED for each pixels, the view angle was over 160 both of vertical and horizontal, and the color was mixed due to 3 LED chip into 1 SMD LED.
For controller system, we use advantage design for video graphic scan, there's big output digital signal to show real color. We provide after-service all over the world such as technology support, installation testing and so on.
