|Place of Origin:||Shen Zhen China|
|Brand Name:||AVOE LED|
|Minimum Order Quantity:||5sqm|
|Packaging Details:||Flight case, Plywood case|
|Delivery Time:||10 working days after receiving the payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||10K sqm per month|
|Name:||Outdoor Fixed LED Display||Pitch:||10mm|
|Pixel Density:||10000 Dots/sqm||Brightness:||8000cd/sqm|
|Pixel Configuration:||1R1G1B||Module Dimension:||160*160mm|
Magnesium Alloy Outdoor Fixed LED Display,
8000nits Outdoor Fixed LED Display,
RGB P10 Outdoor Led Video Display

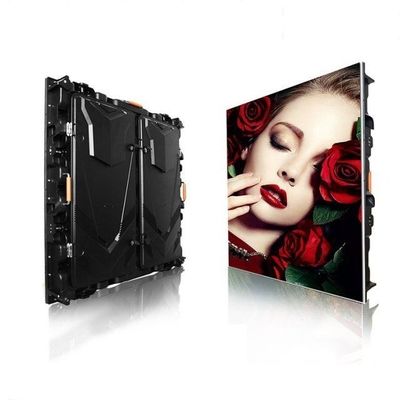

RGB P10 Outdoor Fixed AVOE LED Display 960*960mm magnesium alloy waterproof cabinets 8000nits
Display contents real-time updates, high brightness, high definition, size and shape can be designed upon client's actual requirement, exquisite, vivid display effects, big viewing angle etc.
The full color AVOE LED Display has brought us a colorful world, AVOE LED display attract more viewers for less cost than other standard media using targeted messages that capture your audience with light, motion and color.
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.
|White balance brightness||>8000cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 16bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||CAT6 cable:＜100 m; Single mode fiber:＜10 km|
|Driving mode||Constant driving current|
|Scanning mode||1/4 scan|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Software environment||Windows (2007/XP/Vista/7/8/10)|
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moisture-proof, dust-proof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
