P2.976mm Indoor Rental LED Display

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P2.976INRGB
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Indoor Rental LED Display Pixel Pitch P2.976
Pixel Density 112896dots/sqm LED Specification SMD2020
Moudle Size 250X250mm Application Stage, Concert, Live On TV, Wedding, Conference, Ceremony Gala, Exhibition Presentation
Usage Indoor Tube Chip Color Full Color
Display Function Video,Picture.Animation,Image,Animation,graphics Screen Dimension Customized,500x500mm
Warranty 3 Years Brightness >1200nits
Led Chip NationstarSMD2020 Module Size 250x250mm
Life Span 100000 Hours Product Name Led Video Display Panel,indoor Rental Led Display
Cabinet Size 500x500x77mm Cabinet Weight 7.5KG/cabinet
Pixel Configuration SMD Refresh Rate 3840Hz
High Light

P2.976mm Indoor Rental LED Display


UHD4KS Indoor Rental LED Display


P2.976mm Indoor Rental LED Screen

Leave a Message
Product Description

P2.976mm Indoor Rental LED Display


UHD4KS ICN2153IC P2.976mm Indoor Rental LED Display 3840Hz SMD2020 RGB Cabinet 500*500mm Corner Protection




1. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.


2. Provide LED screen technical training (factory or on-site) for different customers.


3. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.


4. Ideal for super market, Shopping mall, hospital, bank, enterprises, government offices, exhibition hall, hotel, sports stadium center, customs, staging area,car exhibition, airport, transportation, parks, TV.


5. Customized LED screen software and hardware products will be provided base on customers’ requirements.


6. Fine and Smooth Picture: Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.



Technical Parameters

Type Parameter name
Intdoor P2.976 Full Color LED Modules Parameter
Module constitute
Pixel structure RGB
LED specification SMD2020
Pixel composing 1R1G1B
Pixel distance 2.976mm
Module resolution 84*84dots
Moudle size 250X250mm
Pixel density 112896dots
Peak power consumption 30W
Moudle weight 0.412kg
Cabinet parameter
Cabinet type Die-casting aluminum
Cabinet dimension 500X500mm
Cabinet resolution 168*168dots
Cabinet area 0.5m2
Optical parameter
White balance brightness 1200cd/m2
Best visual distance >3m
Horizontal viewing angle 140
Vertical viewing angle 120
Luminance uniformity >98%
Contrast 3000:1
Electrical parameter
Maximum power 800W/m
Average power 320W/m
Input voltage AC220V(50HZ)
Output voltage DC5V
Processing performance/
Operation parameter
Drive mode 1/28scan
Frame frequency 60Hz
Refresh rate >3840Hz
Control method Synchronous
Typcial life values 100000hrs
Working environment temperature -10~60
Working environment humidity 10%~70%

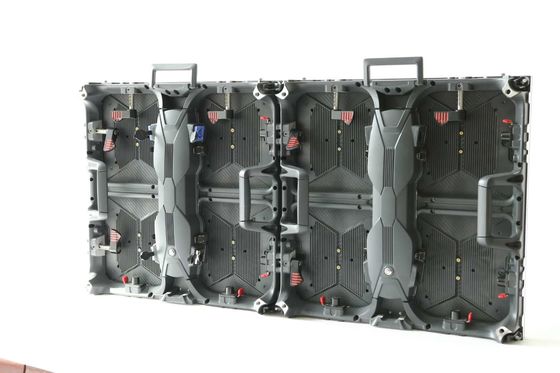

P2.976mm Indoor Rental LED Display 0P2.976mm Indoor Rental LED Display 1


P2.976mm Indoor Rental LED Display 2P2.976mm Indoor Rental LED Display 3P2.976mm Indoor Rental LED Display 4

Product Advantage


1. Featured like high precision,lightweight,ultra thin and die casting aluminum.


2. Offer excellent contrast and image quality.


3. Robust structure and high quality materials allow LED screen to have amazing durability.
