IP65 Protection P3.91 Outdoor Rental LED Display For Railway Stations / Airports

MOQ:	5sqm
Price:	Negotiable
Standard Packaging:	Flight case, Plywood case
Delivery Period:	10 working days after receiving the payment
Payment Method:	T/T, Western Union, MoneyGram, L/C
Supply Capacity:	10K sqm per month

Detail Information

Product Description

Detail Information

Place of Origin

Shen Zhen China

Brand Name

AVOE LED

Certification

CE RoHS

Model Number

AE-P3.91ORRGB

Name:

Outdoor Rental LED Display

Pixel Pitch:

3.91 Mm

Pixel Configuration:

SMD2121

Cabinet Dimension:

500*500*70mm/500*1000*70mm

Feature:

Light Weight

Application:

Railway Stations, Airports, Bus Stations

Usage:

Outdoor

Screen Dimension:

500*500 / 500*1000mm

Tube Chip Color:

Full Color

Display Function:

Video

Brightness:

6500cd/sqm

Warranty:

5 Years

Life Span:

≥100000 Hours

Product Name:

Led Video Display Panel,Rental Led Display,High Quality Stage Events Rental Use Outdoor Full Color Led Display

Cabinet Size:

500mm*500mm*110mm,500x1000 Optional

Module Size:

250mm*250mm

Color:

Full-color

Refresh Rate:

1920/3840

Cabinet Weight:

7KG/pcs / 13KG/pcs

Certification:

CE,ROHS,UL,FCC,ISO9001

Power Supply:

G-energy,customzie,Meanwell Optional

Highlight:

outdoor led screen rental

outdoor full color led display

Product Description

IP65 Protection P3.91 Outdoor Rental LED Display For Railway Stations / Airports

Features

Curved angle : ±10° adjustable, creative design to meet your requirement;
Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
High brightness: More than 6000nits
High waterproof grade: IP65 protection, can be sustain strong strom and rain, have the best waterproof ability in outdoor use,SMD LEDs, wide viewing angle, Hor. Ver. 140 degree;
Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;

Specifications

Pixel Configuration	SMD1921
Pixel pitch(mm)	3.91
Pixel density(dots/m2)	65536
Module resolution(W×H)	64×64
Module size (mm)	250(W)×250(H)
Module weight (kg)	0.72
Maximum power consumption of the module(W)	45
Module of cabinet (W×H)	2×2/2×4
Cabinet resolution(W×H)	128×128/128×256
Cabinet size (mm)	500(W)×500/1000(H)×75(D)
Cabinet area(m2)	0.25/0.5
Cabinet weight (kg)	7/13
Cabinet level up degree(mm)	≤0.2
Maintenance mode	Rear
Cabinet raw material	Die-casting aluminum
Single-point brightness correction	yes
Single – point color correction	yes
White Balance Brightness (nits)	≥3500(6500K)
Color Temperature (K)	3200—9300(adjustable)
Viewing Angle (Horizontal / Vertical)	160/120
Deviation of center distance of light – emitting	<3%
Brightness / chromaticity uniformity	≥97%
Contrast	4000:1
Peak power consumption (W / m2)	800
Average power consumption (W / m2)	250
Power supply requirements	AC90~264V, frequency 47-63(Hz)
Frame rate (Hz)	50&60
Drive mode	Constant drive, 1/16
Grayscale level	65536
Refresh rate (Hz)	≥1920
Number of color processing bits	14bit
Video playback capabilities	2KHD, 4KHD
Operating temperature / humidity range (℃ / RH)	-20 – 60 / 10%-85%RH
Storage temperature / humidity range (℃ / RH)	-20 – 60 / 10%-85%RH
Applicable standards	CCC,TUV-CE,ETL

Calibration Data Storage Function

Modules and control box can be installed and maintained from either front or rear.
Detachable panel

Independent design of module, frame and control box

Touring Cart

Customized touring cart simplify your screen assembly in every show.

Light-blocking design

Patented light-blocking design prevents light leakage to the front.

Fast Lock Between Modules

Integrated curveable latch system

Protective Covers

Protective covers reduce all potential damages to a maximum extent.

The high precision panels can realize your valued creations by being assembled into concave and convex screens.

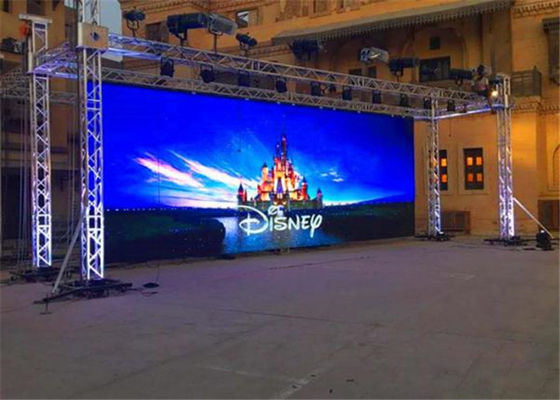

Application:For Sport Centre Advertisement Marketplace Station Stage Background Outdoor Activities Etc.

IP65 Protection P3.91 Outdoor Rental LED Display For Railway Stations / Airports 0

Competitive Advantages:

1. Good quality;

2. Good price;

3. Good 24hours service;

4. Promote delivery;

5. Energy-saving;

6. Small order accepted.

Our serrvices

1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation

2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
