Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AV-P1.875IFRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Fine Pitch LED Display Pixel Pitch 1.875
LED Type SMD1515 Application Control Rooms, Broadcasting Studios, Meeting & Training Room
Usage Indoor Tube Chip Color Full Color
Display Function Video,picture,Text,Graphics,animation Life Span 100000 Hours
High Light

small pixel pitch led display

,

meeting room led display

Leave a Message
Product Description

Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation



Fine Pitch LED Display delivering true-to-life images and videos with high precision pixel pitches, bringing a great viewing experience to the audience at a close viewing distance. By providing extraordinary image quality with precise colors, Fine Pitch LED Display creates remarkable visual experiences that keep constant over time. What’s more, it allows you to increase your screens’ work-life thanks to their high reliability and advanced features. Lightweight front accessible Fine Pitch LED Display with conveniences over the conventional fixed led screen, it makes things easier for stack or hanging installation without any tools. The uses for the Fine Pitch LED Display are endless, and people become more and more used to interacting with them for business. People always stop and say “Wow.”



Feature

1. Die-casting Aluminum LED Panels, 80mm thickness, 7.5kg/pcs pane

2. high gray scale, 5000:1 contrast ratio,16 bit gray level, 3840Hz refresh rate

3. seamless tiled display, <0.01mm.

4. wide color gamut, good color uniformity, less glare and less shadow

5. Natural heat dissipation, ultra silence

6. die-casting aluminum, CNC fine finishing,good flatness

7. with anti-slip handles, and high quality fast locks

8. wireless connection,double backup design, with double control cards.

9. support both rear and front service


Application:

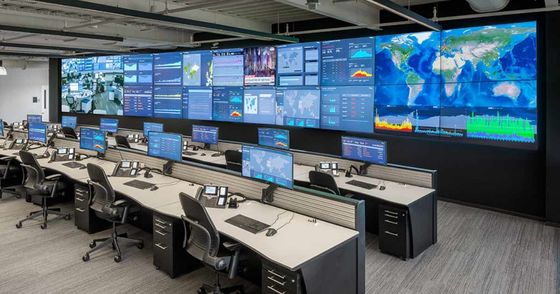

State-of-the-art and upgraded Fine Pitch LED Display solutions will enable novel applications in a wide range of fields, including control rooms, broadcasting studios, meeting & training rooms, museums, college campuses, brand retails, shopping malls, cinemas, hotels, sports bars, airports, and houses of worship, etc.





Product specification

Pixel pitch(mm) 1.875 1.935 1.998 2.4 2.5
Pixel Configuration SMD1515
Pixel density(dots/m2) 284426 267000 250000 173600 160000
Module resolution(W×H) 178*89 124*93 120*90 100*75 96*72
Module size(mm) 320(W)*160(H)
Module weight(kg) 0.4
Maximum power consumption of the module(W) 40
Module of cabinet(W×H) 2*3
Cabinet resolution(W×H) 356*267 248*279 240*270 200*225 192*216
Drive mode 1/32 1/31 1/30 1/25 1/24
Cabinet size(mm) 640(W)*480(H)
Cabinet area(m2) 0.2025
Cabinet weight(kg) 8
Cabinet level up degree(mm) ≤0.1
Cabinet raw material Die-casting aluminum
White Balance Brightness(nits) 500-1000
Color Temperature (K) 3200—9300(adjustable)
Viewing Angle 160/160
(Horizontal / Vertical)
Deviation of center distance of light – emitting <3%
Brightness / chromaticity uniformity ≥97%
Contrast 5000:1 5000:1 5000:1 5000:1 5000:1
Refresh rate (Hz) ≥3840
Number of color processing bits 16bit
Video playback capabilities 2KHD,4KHD
Applicable standards CCC,TUV-CE,ETL

*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for details. All rights are reserved to AVOE.



Detailed Pictures



Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation 0

Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation 1Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation 2Ultra Silence P1.875 full color indoor LED display Modular Led Screens Natural Heat Dissipation 3
