P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P16
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Mobile Truck LED Display Pixel Pitch (mm) 16mm
Working Voltage 110~240V Density Of Pixel (dot/s.q.m) 3906 Dots
Driving Method Static Constant Current Driving Application Promotional Activities / Public Relations Activities,
High Light

truck mounted led screen


trailer led display

Leave a Message
Product Description

P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving

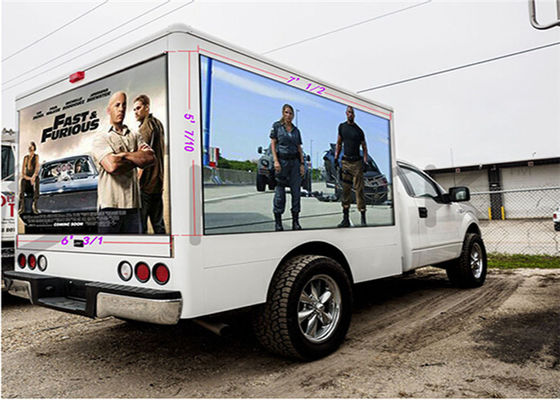

Mobile Truck LED Display is being an important advertising media for outdoor events and advertising campaign on basis of its unique advanced structure feature.It’s known as truck mounted LED display and trailer mounted LED screen.The products are widely use for advertising,shows,square,concert, sporting event, festival, corporate gathering or charitable event,Grand Theatre, large song and dance party, fashion show.



High color fidelity and uniformity

Reliable performance

Low consumption and long lifespan

Excellent waterproof/dustproof structure

Operational within minutes

Wide viewing angle

Vivid image in bright daylight or night

Great advertising and shows opportunity


No. Specs PH16mm outdoor full color LED display for truck
1 Pixel pitch (mm) 16mm
2 Size of module (mm) 256*128mm
3 Density of pixel (dot/s.q.m) 3906 dots
4 Pixel composition 2R1G1B
5 LED Encapsulation DIP546
6 Resolution of Module 16*8
7 Power Consumption of Module(W) <30W
8 Best Viewing distance (m) 16mm
9 The Optimum View Angle 110(H)70??(V)
10 Maximum Power Consumption (w/s.q.m) 1000 &1250W
11 Size of standard Cabinet (mm) 1024*768mm
12 Resolution of standard Cabinet 64*48
13 Weight of standard Cabinet 60Kg (waterproof)
14 Driving Components MBI5024GP
15 Driving Method Static Constant Current Driving
16 Refresh frequency (Hz) >70Hz
17 Scan speed (Hz) >1000Hz
18 Luminance of white balance (cd/s.q.m) >8000
19 Working voltage 110~240V
20 Grey Scale (Grade) >16384
21 Brightness adjustment 256 levels of each color
22 Input signal RF,S-Video (etc.),DVI,VGA
23 Control system PCTV+DVI Display card + main controller card + optic ribre transmission (optional)
24 Mean Time Between Failure (hours) >5000 hours
25 Life Span (hours) >100000 hours
26 Out of control Rate <0.0001



P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving 0P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving 1P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving 2P16mm Mobile Truck LED Display For For Outdoor Events Static Constant Current Driving 3
