Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Transparent LED Display Pixel Pitch 3.91-7.82
Pixel Density 32768 Refresh Rate ≥1920HZ
Tube Chip Color Full Color,RGB Display Function Video,Animation,Graphics,Animation/ Graphics/ Video,Video/Image
Usage Indoor,Outdoor,Other Brightness Over 1000cd/sqm,4500 Cd/m2,≥5000nits
Application Live Events Led Display,advertising,indoor And Outdoor Building/stage Led Display,Indoor,Outdoor Advertising Led Life Span 100000hours,100000 Hours
Cabinet Size 1000x500mm Viewing Angle 140 /120
Highlight

glass wall led display

,

glass window led display

Leave a Message
Product Description

Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm

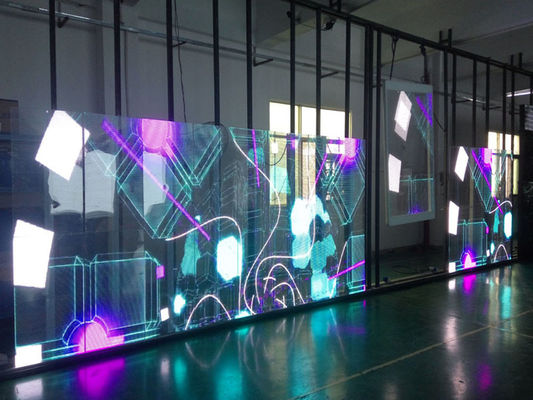

Transparent AVOE LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~90% transparency, you won’t miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also view-able from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.

Transparent LED Display possesses transparent and modern product aesthetics which can benefit to installation over windows, glass facade and for creative event production as well. It is lightweight and ultra-thin, making deployment a breeze. High transparency guarantees natural view behind the screen while delivering clear and crisp contents view-able for both day and night.



Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level



Features



1. Standardized installation framework (standard frame size 1000MM wide X500MM height), small on-site construction difficulty, high precision, fast efficiency! The measure, the industry faster than 3-5 times, greatly reducing the body of the screen frame and fixed installation time, substantial savings in installation costs.



2.  The screen is fixed to the body frame fixed firmware process is simple, easy to operate, completely within the industry complex and time-consuming step shortcomings.



3.  The dual power backup design: display body control card power supply and separate power supply, reducing power interference between the two, improve quality screen body stability.



4. Ultra power-saving design: each squared average power consumption control at about 150W, than peers of similar products saving more than 50% each year for the owner saving about eight million (100 square color screen, runs daily from 8:00 am to 22:00, ie 14 hours calculated)



Outdoor Advertising Media Window Led Wide applications
Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.



Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 0Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 1Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 2Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 3





Detailed Pictures



Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 4

Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 5

Outdoor Transparent AVOE LED Display P3.91-7.82 1920Hz Refresh rate Ultra Power Saving Design 1000x500mm 6
