80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores

MOQ: 5sqm
Price: Negotiable
Standard Packaging: Flight case, Plywood case
Delivery Period: 10 working days after receiving the payment
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10K sqm per month
Detail Information
Place of Origin
Shen Zhen China
Brand Name
AVOE LED
Certification
CE RoHS
Model Number
P3.91-7.82
Name:
Transparent LED Display
Pixel Pitch:
3.91-7.82
Module Size:
Customized Size Available
Application:
Large Shopping Mall, Theatres, Chain Stores,
Tube Chip Color:
Full Color,RGB
Display Function:
Video,Animation,Graphics,Animation/ Graphics/ Video,Video/Image
Usage:
Indoor,Outdoor
Pixels:
3.91-7.81mm
Brightness:
≥5000nits
Led Chip:
SMD1921 (Anti-UV),Nationalstar
Life Span:
100000 Hours
Cabinet Size:
500x1000mm Or 1000x1000mm
Viewing Angle:
140 Degree /140 Degree
Refresh Rate:
1920Hz,3840Hz
Highlight:

glass wall led display

,

clear led screen

Product Description

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores



Curtain screens are ideal for window displays in retail stores, car showrooms and entertainment venues. They allow natural light to pass through which is perfect for retail applications.


LED Curtain and LED Mesh screens are available in various resolution levels to suit your required application.


LED curtain screens and LED mesh screens can come in rigid panels or flexible panels that can be rolled up. The benefits of the flexible panels are they can be curved into a perfect circle and allow for circular screens. The curtain screen that LED Media supply is rotatable which can be rotated from 15 degrees to 30 degrees. All our curtain and mesh screens come with SMD led chips and we supply indoor or outdoor solutions. The transparency of our curtain screens and mesh screens range from 10%-45%, which allows for natural light to come through your windows but doesn’t affect the picture quality.



These screens can be installed without complicated tools and you can install these screens by hanging them in a semi permanent style or in a fixed installation.





Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level



Features



Modular Design

Standard size can be used to create larger displays, using the right resolution for the job



Easy Setup and Installation

Modular panels can snap toghter easily by hand on support frames. Custom installatios also available.



Light Weight and Easy Transportation

14kg/sqm(including all structure and power supply). it's half of the weight of normal LED displays.



Easy to Maintance and Update

Long life expectancy as replacement LED strips are swapped in easily without having to replace the entire panel



Outdoor Advertising Media Window Led Wide



Applications
Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.

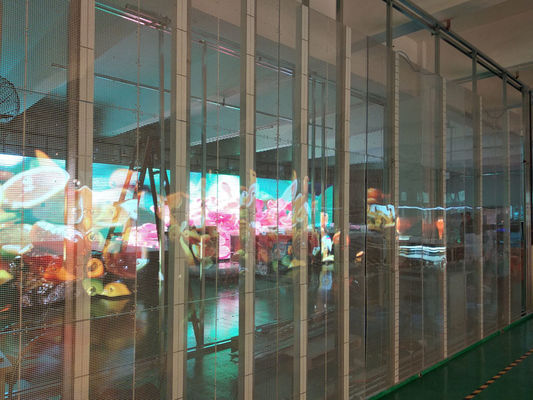

Detailed Pictures



80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 0

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 1

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 2

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 380% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 480% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 580% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 680% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 7







Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
