Place of Origin: | Shen Zhen China |
---|---|
Brand Name: | AVOE LED |
Certification: | CE RoHS |
Model Number: | AE-P3.91IRRGB |
Minimum Order Quantity: | 5sqm |
Price: | Negotiable |
Packaging Details: | Flight case, Plywood case |
Delivery Time: | 10 working days after receiving the payment |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 10K sqm per month |
Name: | Indoor Rental LED Display | Pixel Pitch: | 3.91mm |
---|---|---|---|
Cabinet Material: | Die Cast Alu | Pixel Density: | 65746 Pixels/sq.m |
Pixel Type: | SMD2121 | Application: | Stage, Concert, Live On TV, Wedding, Conference, Ceremony Gala, Exhibition Presentation |
Usage: | Indoor,Advertising | Tube Chip Color: | Full Color |
Display Function: | Video,Picture.Animation,Image,Animation,graphics | Pixels: | 3.91mm |
Screen Dimension: | Customized,500x500mm | Warranty: | 3~5 Years |
Brightness: | >1200nits | Led Chip: | Epistar,Nation Star |
Module Size: | 250x250mm | Life Span: | 100000hours,100000 Hours |
Product Name: | Trade Assurance SMD Indoor Rental P3.91 LED Display With Best Price,Led Video Display Panel,P3.91 Indoor Flexible Led Display With Led Display Controller Software,indoor Rental Led Display | Cabinet Size: | 500x500x77mm,500x500x65mm Die Casting Aluminum,500x1000mm |
Cabinet Weight: | 7.5KG/cabinet | Module Resolution: | 64*64dots |
Pixel Configuration: | 1R1G1B,SMD,3-in-1 | Refresh Rate: | 1920Hz,3840Hz,1920/3840 |
High Light: | indoor led panel,full hd led display |

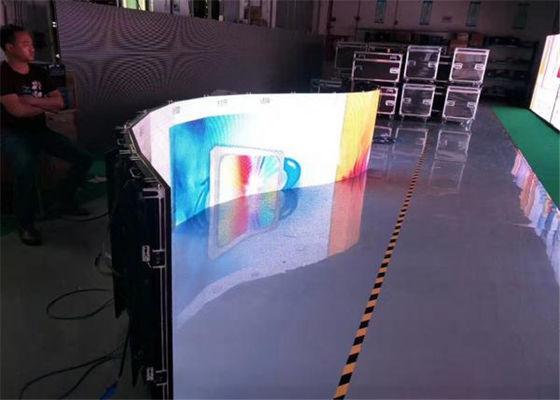

Front Maintenance Indoor Rental LED Screen P3.91mm Pixel Pitch SMD2121 1920Hz
Product Features:
Application:
Widely used in high-end conference, high-end hotel, concert, live on TV, wedding, press conference, ceremony gala, exhibition presentation and commercial advertising and other rental events.
General Information:
Description | Indoor Rental LED Display | |||||
Pitch | 3.91MM | Pixel Density | 65746 pixels/sq.m | |||
Pixel Configuration | 1R1G1B | Pixel Type | SMD2121 |
LED Information:
Color | Wave Length | Brightness | LED Chip | ||
Red | 620~625nm | 130~180mcd | Epistar | ||
Green | 520~525nm | 450~550mcd | Epistar | ||
Blue | 465~470nm | 65~90mcd | Epistar |
Module Informatiom
Module Size | 250*250mm | Module Resolution | 64*64 pixels |
Cabinet Information:
Module Component | W:2*H:4pcs=8pcs |
Cabinet Size | 500*1000*75mm |
Cabinet Resolution | 128*256 pixels |
Cabient Weight | 13.5kg/pc |
Service Access | Front |
Product Parameter:
ITEM | SPECIFICATION |
Drive Mode | 1/16 scan, constant current |
IC | MBI5124 |
Brightness | 1500CD/SQ.M(adjustable) |
Refresh Rate | 1920Hz |
Frame Frequency | 50&60Hz |
Grey Scale Level | 65536(adjustable) |
Color Temperature | 3200~9300K(adjustable) |
Contrast Ratio | 4000:1 |
Viewing Angle | 150°(Horizontal),120°(Vertical) |
Best Viewing Distance | 3~50m |
Protection Level | IP31 |
Power Consumption (Max) | 800W/M2 |
Power Consumption (Avg) | 300W/M2 |
Voltage | AC 100V~240V, 50/60 Hz |
Control System | Synchronous/Asynchronous Control System |
Input Port | DVI Connector (DVI Port) |
Input Signal | RF, TV, S-VIDIEO, RGB, VGA, DVI, HDTV, PAL, YUT, YC, COMPOSTITION |
Product Advantage
1. Featured like high precision,lightweight,ultra thin and die casting aluminum.
2. Offer excellent contrast and image quality.
3. Robust structure and high quality materials allow LED screen to have amazing durability.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
