P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P4.81IRRGB
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Detail Information
Name: Indoor Rental LED Display Refresh Rate:: 1920 Hz
Drive Mode: 1/13 Scan Protection Level: IP31
Pixel Configuration: 1R1G1B Application: Stage, Concert, Live On TV, Wedding, Conference, Ceremony Gala, Exhibition Presentation
Tube Chip Color: Full Color Display Function: Video,Picture.Animation,Image,Animation,graphics
Pixels: P4.81mm Screen Dimension: Customized,500x500mm
Warranty: 3~5 Years Brightness: >1200nits
Led Chip: Nation Star,NationstarSMD2020 Module Size: 250x250mm
Life Span: 100000hours Pixel Density: 43222 Dots/sqm
Pixel Pitch: P3.91 And P4.81 Cabinet Size: 500x500x77mm,500x500x65mm Die Casting Aluminum,500x1000mm
Cabinet Weight: 7.5KG/cabinet Module Resolution: 52 Dots X 52 Dots
Refresh Rate: 1920/3840
High Light:

indoor led panel

,

full hd led display


Product Description

P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level



Features



1. Provide LED screen technical training (factory or on-site) for different customers.



2. Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show.



3. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.

4. Customized LED screen software and hardware products will be provided base on customers’ requirements.



5. Various applications: suit for hanging up, piling and fixing installation. Usage: outdoor information publish, outdoor advertising, etc.



6. Over 1980Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.



Widely applications:

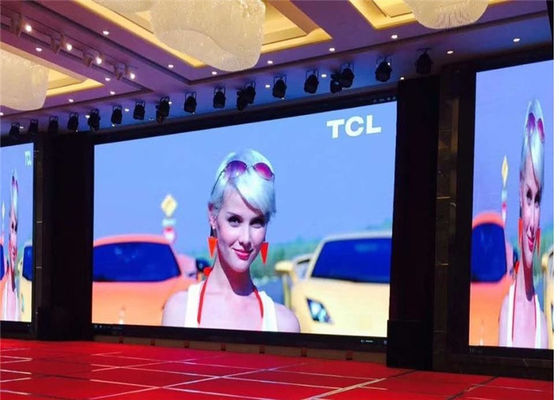

Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other indoor rental events.



Product Specification:

Pixel pitch 3.91mm 4.81mm 5.68mm 6.25mm
LED configuration 2020 black 2020 black 3528 3528
LED chip Epistar Epistar Epistar Epistar
LED package Kinglight Kinglight Kinglight Kinglight
Module size 250x250mm 250x250mm 250x250mm 250x250mm
Cabinet size 500x500mm 500x500mm 500x500mm 500x500mm
Cabinet NW 8KG 8KG 8KG 8KG
Cabinet material Die cast Alu Die cast Alu Die cast Alu Die cast Alu
Driving mode 1/16 1/13 1/11 1/10
Driving IC MBI5124 MBI5124 MBI5124 MBI5124
Refresh rate ≥2880 Hz ≥2880 Hz ≥2880 Hz ≥2880 Hz
Brightness ≥1500 cd/㎡ ≥1500 cd/㎡ ≥1500 cd/㎡ ≥1500 cd/㎡
PCB 4 layers 4 layers 4 layers 4 layers
Grey level 16.7 million 16.7 million 16.7 million 16.7 million
Life span 100,000 hrs 100,000 hrs 100,000 hrs 100,000 hrs



P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level 0P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level 1P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level 2P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level 3P4.81mm Ultra Thin Indoor Rental LED Display Support All Media Format IP31 Protection Level 4

Product Advantage



1. Featured like high precision,lightweight,ultra thin and die casting aluminum.



2. Offer excellent contrast and image quality.



3. Robust structure and high quality materials allow LED screen to have amazing durability.
