Place of Origin: | Shen Zhen China |
---|---|
Brand Name: | AVOE LED |
Certification: | CE RoHS |
Model Number: | AE-P3.91ORRGB |
Minimum Order Quantity: | 5sqm |
Price: | Negotiable |
Packaging Details: | Flight case, Plywood case |
Delivery Time: | 10 working days after receiving the payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 10K sqm per month |
Name: | Outdoor Rental LED Display | Pixel Pitch: | 3.91mm |
---|---|---|---|
Pixel Density/㎡: | 65,536 Dots | Module Size: | 250*250mm |
Application: | Commercial Center, Advertising- Information Publish Board | Usage: | Outdoor,Indoor |
Pixels: | 3.91mm | Screen Dimension: | Customized,500x500mm,500*500 / 500*1000mm |
Tube Chip Color: | Full Color | Display Function: | Video |
Brightness: | 6000nit | Warranty: | 2-5 Years |
Life Span: | 100000hours | Product Name: | Led Video Display Panel,Rental Led Display,High Quality Stage Events Rental Use Outdoor Full Color Led Display |
Cabinet Size: | 500x500x77mm,500x1000 Optional,500x500x65mm Die Casting Aluminum | Module Size: | 250mm*250mm |
Color: | Full-color | Refresh Rate: | 1920/3840 |
Cabinet Weight: | 7KG/pcs / 13KG/pcs | Certification: | CE,ROHS,UL,FCC,ISO9001 |
Power Supply: | G-energy,customzie,Meanwell Optional | ||
High Light: | outdoor led screen rental,events led display |

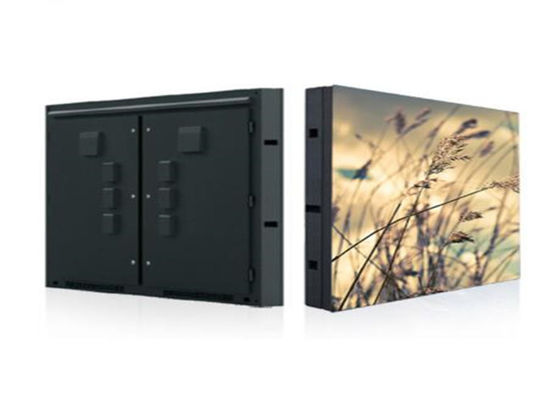

1R1G1B SMD1921 P3.91 Outdoor Rental LED Display For Stage 250*250mm Module Size
Features
1. Good viewing angle: both in the horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal distribution and large drop height.
2. Favorable effect: using the nonlinear correction technology makes the image clearer and the layering stronger.
3. Ambient light control,Extended display lifetime by automatic adjustment of brightness depending on the actual ambient light conditions.
4. Using SMT or AI automatic production line
It reduces manufacturing variation and improves product performance.
5. Work around the clock:Color fidelity, high refresh rate, antistatic, dust-proof, good heat dissipation, cost-effective .
6. Using the program editing and player software, using mouse to edit, add, delete and modify text, graphics and images, arrangement of the contents stored in the control card, play back information by Program table automatically cycle
7. Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.
Product Specification:
Pixel Pitch | 3.91mm |
Pixel Density/㎡ | 65,536 dots |
LED Configuration | 1R1G1B 1921 |
Module Size | 250mm * 250mm |
Module Resolution | 64 * 64 dots |
Panel Dimension (WxHxD) | 500*500*75mm |
Panel Resolution | 128 * 128 dots |
Panel Weight | 8 Kg |
Driving Mode | 1/16 |
Refresh Rate | 2880Hz |
Brightness | ≥5500cd/㎡ |
Power Consumption | Avg:210 W/ Panel Max: 600 W/Panel |
Grayscale | 65,536 level |
Viewing Angle (H/V) | 140°/140° |
Lifespan | 100,000 hours at 50% brightness |
Operating Temperature | -40℃~ +60℃ |
IP Rating | IP65 |
Control System | Novastar/Linsn |
Application:For Sport Centre Advertisement Marketplace Station Stage Background Outdoor Activities Etc.
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
