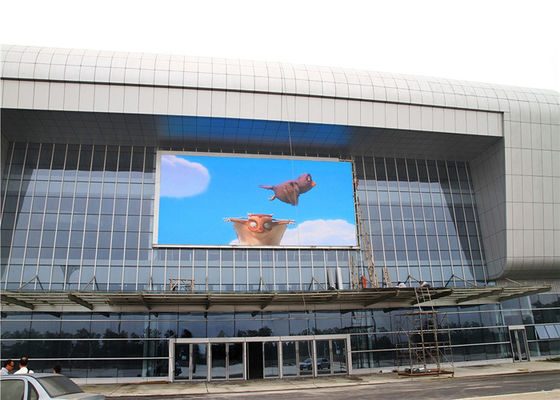

Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535

Place of Origin Shen zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P10OFRGB
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case.
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10K sqm per month
Product Details
Name Outdoor Fixed Full Color LED Display Resolution/mm 10mm
LED Type SMD3535 Configuration 1R1G1B
Pixel Density 10000 Pixel/㎡ Brightness ≥ 6000 Cd/㎡
High Light

waterproof led display

,

roadside led display

Leave a Message
Product Description

Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535​​



Description:



Outdoor fullcolor led display with its unique advantages, has gradually replaced the traditional billboards etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display can perfect combine text, pictures, video, and sound with high resolution, high brightness and full color! LED display Advertising can easily attract the attention of pedestrians, and also are easy to remember,which can generate greater advertising effectiveness.





Aplication:

The solution can be widely applied in churches,schools,automotive,retail,government,etc.



Parameters

1 Outdoor Series Parameters
2
3 Pixel Pitch 10 mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 16*8 pixels
7 Module Size 160*160 mm
8 Pixel Density 10000 pixel/㎡
9 Refresh Rate ≥ 1920Hz
10 Gray Scale 16 Bit
11 Brightness ≥ 6000 cd/㎡
12 Scan Mode 1/4
13 Frame Rate 50HZ~60HZ
14 Viewing Angle H:140°, V:140°
15 Material Iron/Aluminum
16 Cabinet Resolution 96*96 pixels
17 Cabinet Size 960*960*135mm
18 Cabinet Weight 50 Kg
19 IP Rating Front IP65, Rear IP54
20 Max.Power Consumption 600W/Panel
21 Avg.Power Consumption 200W/Panel
22 Control System Nova/Linsn/Dbstar
23 Operation System Windows/me/200NT/XP
24 Working-Temperature '-20℃~60℃
25 Working Humidity 10%~90% RH
26 Input Voltage AC 110~220 V (±5%)
27 Blind spot rate ≤0.01%
28 MTBF 35000 Hour
29 Lifespan 100000 Hour


Competitive Advantages:


1. cabinet size can meet customers' needs, shape including inner arc, outer arc and corner;
2. High ingress protection,internal wiring makes the whole structure neat and clean as well as environment corrosion and damages by animals could be prevented;
3. Top-brand power supply(PF>0.95,power efficiency>80%) and double signal backup, ensuring reliable performance;
4. Good ventilation and heat dissipation with air intake at the bottom and air outlet on top; with bearing fan for heat extraction.



Installation Procedure

Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535 0

Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535 1Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535 2Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535 3Waterproof IP65 P10 Outdoor LED Screen On Building Wall Facade 1R1G1B SMD3535 4
