P3mm Slim Indoor LED Advertising Screen Commercial Led Display Screen Energy Saving

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P3
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Detail Information
Name: Indoor Led Screen Pitch: 3mm
Pixel Density: 111111 Dots/sqm Brightness: 1200 CD/sq. M
Refresh Rate(Hz): 1920/2880/3840 Panel Resolution(pixels): 192x192
Screen Dimension: 192*192mm Tube Chip Color: Full Color
Usage: Indoor Pixels: 3mm
Display Function: Video,text,message,image,picture Warranty: 3~5 Years
Led Chip: Epistar,Kinglight,Silan Module Size: 192x192mm
Life Span: 100000hours Application: Indoor Advertising,video Commercial Ad,publicity
Product Name: Led Video Display Panel Color: 1R1G1B,Full-color,Full Color,RGB
Refresh Rate: ≥1920 Hz
High Light:

retail led display

,

indoor led advertising screen


Product Description

P3mm Slim Indoor LED Advertising Screen Commercial Led Display Screen Energy Saving



Key Features:

  1. Silent operation with widely viewing angle give you all-around visual enjoyment.
  2. Little attenuation and good heat dissipation protect the product at an large extent.
  3. Driving IC: making the defective phenomena, such as dark bright, virtual light avoidable.
  4. The voltage fluctuation range is less than 5% and the stability is high.
  5. Connector: Ensuring the stable transmission of power and signal.
  6. Easy installation: 100 pieces of cabinets' installation can be finished in one hour by one person.
  7. The replacement of any cabinet can be done within 50 seconds.
  8. This indoor led dancing floor support for interactive function when you touch it by your foot. And all the material is anti-skid and durable to protect dancers and the screen from damage.

Parameters:

Item Value
Pixel Pitch(mm) 3
Pixel Density(pixels/㎡) 111111
Viewing Angle(Deg.) H: 160/ V: 160
Brightness(nits) 1200
Grey Level(bit) 12/14/16
Refresh Rate(Hz) 1920/2880/3840
Panel Dimension(mm) 576(W)x576(H)
Panel Dimension(inch) 22.68(W)x22.68(H)
Panel Resolution(pixels) 192x192
Panel Type and Material Die-casting aluminum
Panel Weight(kg) 11
Module Size(mm) 288(W)x288(H)
Module Size(inch) 11.34(W)x11.34(H)
Protection Grade IP30
Serviceability Front/Rear
Avg.Power Consumption(W/㎡) 143(AC)
Max.Power Consumption(W/㎡) 570(AC)
Brightness Adjustment Manual/Auto/Programmable
Operating Temp/Humidity(℃/%RH) -20~+50/10~90
Storage Temp/Humidity(℃/%RH) -40~+60/0~90
Lifetime(hours) 100000(Nomal Temp)
Compliant Standard CE,FCC,RoHS
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.

P3mm Slim Indoor LED Advertising Screen Commercial Led Display Screen Energy Saving 0P3mm Slim Indoor LED Advertising Screen Commercial Led Display Screen Energy Saving 1P3mm Slim Indoor LED Advertising Screen Commercial Led Display Screen Energy Saving 2

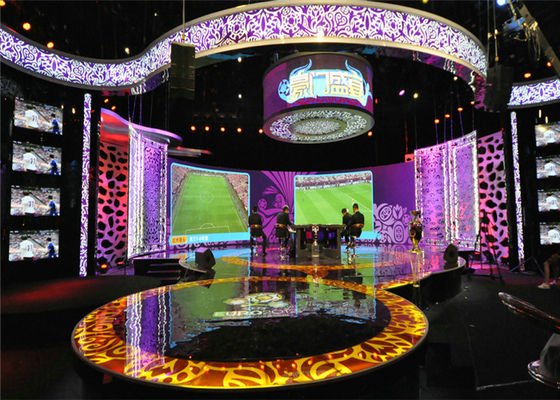

Widely applications:
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.
