P6mm Indoor Fixed LED Display SMD3528 160 Degree Wide Viewing Angle Clear Vivid Image

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P6
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Indoor Led Screen Pitch 6mm
LED Type SMD3528 Brightness >1200nits
Viewing Angle(Deg.) H: 160/ V: 160 Grey Level(bit) 12/14/16
Screen Dimension Customized Tube Chip Color Full Color
Usage Indoor Pixels 6mm
Display Function Video,text,message,image,picture Warranty 3~5 Years
Led Chip Epistar,Kinglight,Silan Life Span 100000hours
Application Indoor Advertising,video Commercial Ad,publicity Product Name Led Video Display Panel
Color 1R1G1B,Full-color,Full Color,RGB Pixel Density 27777 Dots/m2,27777dots/sqm
Scan Mode 1/16 Scan Refresh Rate ≥1920 Hz
Pixel Pitch 6mm Power Supply Meanwell
High Light

commercial led display screen

,

indoor led advertising screen

Leave a Message
Product Description

P6mm Indoor Fixed LED Display SMD3528 160 Degree Wide Viewing Angle Clear Vivid Image



Features

1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction

2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.

3. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.

4. Long-term Brightness:
7000-nit brightness (for outdoor full color)(2000 nits brightness for indoor full color ) capacity throughout product lifetime of the LED display screen.

5. Easy Installation & Using:
easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6. Convenient Servicing:
Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Parameters:




Pixel Pitch 6mm
Unit Size 768mmx768mm
LED Type SMD3528
Pixel / Unit 128*128
Unit Weight 20kg
Viewing Angle(H/V) 140° / 140°
Application Storage-40~60° C, Working-20~50° C
Protection Level IP54
Power Consumption(avg.) 300w/m2
Driving 1/16 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Processing 16bit
Brightness >1200nits
Power Supply AC 110/220±10%, 50~60Hz
MTBF ≥ 1, 000 Hours
Life Span ≥ 100000 Hours
Pixel Failure < 0.0003

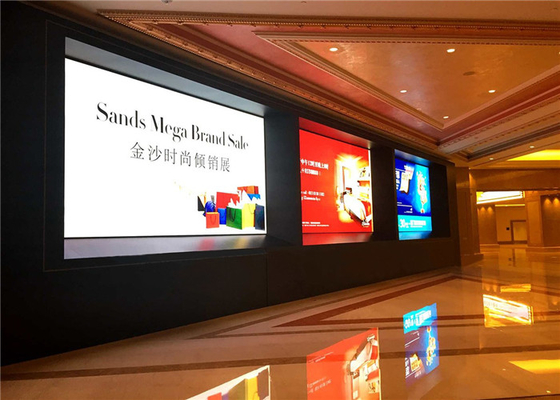

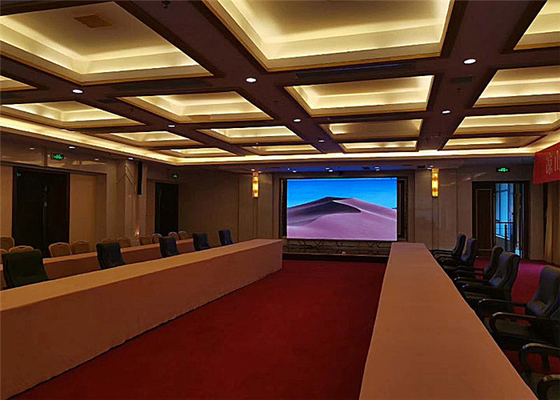

Widely applications:
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.



P6mm Indoor Fixed LED Display SMD3528 160 Degree Wide Viewing Angle Clear Vivid Image 0P6mm Indoor Fixed LED Display SMD3528 160 Degree Wide Viewing Angle Clear Vivid Image 1P6mm Indoor Fixed LED Display SMD3528 160 Degree Wide Viewing Angle Clear Vivid Image 2
