P5mm Indoor Fixed RGB LED Display For TV Room High Definition 600Hz

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P5
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month
Product Details
Name Indoor Led Screen Pitch 5mm
Pixel Density 40000 Dots/sqm Brightness 2000 Cd/sqm
Degree H: 110deg, V: 90deg; LED Type SMD2121
Screen Dimension 320*160mm Tube Chip Color Full Color
Usage Indoor Display Function Video,text,message,image,picture
Warranty 3~5 Years Led Chip Epistar,Kinglight,Silan
Module Size 320x160mm Life Span 100000hours
Application Indoor Advertising,video Commercial Ad,publicity Color 1R1G1B,Full-color,Full Color,RGB
Scan Mode 1/16 Scan Refresh Rate ≥1920 Hz
High Light

commercial led display screen

,

retail led display

Leave a Message
Product Description

P5mm Indoor Fixed RGB LED Display For TV Room High Definition 600Hz



Parameters:

Pitch: 5mm
Pixel density: 40000dots/sqm
Brightness: 2000cd/sqm
Degree: H: 110deg, V: 90deg;
LED type: SMD2121
Pixel configuration: 1R1G1B
Module dimension: 320*160mm
Module resolution: 64*32 dots
Driving method: Static, Constant current
Refresh frequency: 600Hz
Gray scale: 8192
Control system: Synchronization/asynchronism
Voltage: AC 110/220V
Working enbironment: -20deg~50deg;
Max power consumption: 450W/sq. M
Lifespan: 100000hours
MTBF >5000hours
Failure DOT ratio <0.0001
LED R: Wavelength range( 625+/-5nm)
G: Wavelength range( 525+/-5nm)
B: Wavelength range(470+/-5nm)
R: IV(600-720mcd)
G: IV(1800-2000mcd)
B: IV(350-400mcd)



Features:
Display contents real-time updates, high brightness, high definition, size and shape can be designed upon client's actual requirement, exquisite, vivid display effects, big viewing angle etc.
The full color LED Display has brought us a colorful world, LED display attract more viewers for less cost than other standard media using targeted messages that capture your audience with light, motion and color.



Widely applications:
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.

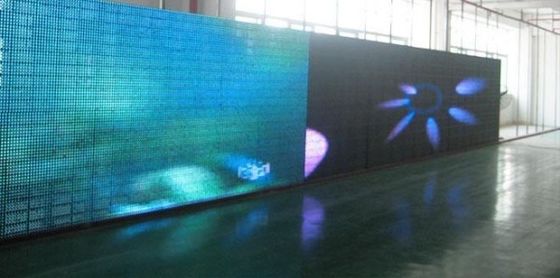

P5mm Indoor Fixed RGB LED Display For TV Room High Definition 600Hz 0P5mm Indoor Fixed RGB LED Display For TV Room High Definition 600Hz 1P5mm Indoor Fixed RGB LED Display For TV Room High Definition 600Hz 2
