SMD2121 P3.91 LED Rental Display Commercial Advertising LED Display For Marketplace

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P3.91ORRGB
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10K sqm per month
Detail Information
Name: Outdoor Rental LED Display Pixel Pitch: 3.91 Mm
Pixel Configuration: SMD2121 Application: Commercial Center, Advertising- Information Publish Board
Usage: Outdoor,Indoor Pixels: 3.91mm
Screen Dimension: Customized,500x500mm,500*500 / 500*1000mm Tube Chip Color: Full Color
Display Function: Video Brightness: 6500cd/sqm
Warranty: 2-5 Years Life Span: 100000hours
Product Name: Led Video Display Panel,Rental Led Display,High Quality Stage Events Rental Use Outdoor Full Color Led Display Cabinet Size: 500x500x77mm,500x1000 Optional,500x500x65mm Die Casting Aluminum
Module Size: 250mm*250mm Color: Full-color,1R1G1B,full Color
Refresh Rate: 1920/3840 Cabinet Weight: 7KG/pcs / 13KG/pcs
Certification: CE,ROHS,UL,FCC,ISO9001 Power Supply: G-energy,customzie,Meanwell Optional
High Light:

events led display

,

outdoor full color led display


Product Description

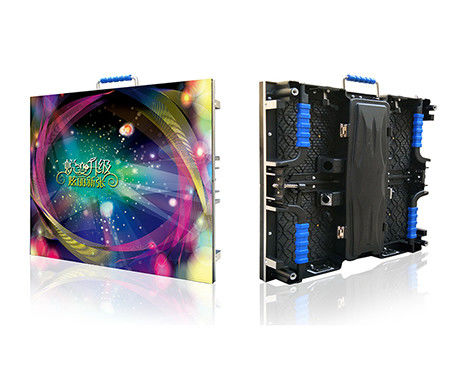

SMD2121 P3.91 LED Rental Display Commercial Advertising LED Display For Marketplace



Features



1. Good uniformity and consistency

It provides for amazingly sharp, vivid and clear images.



2.SMD encapsulation technology, 140 °super wide Angle, making the viewer can obtain excellent display effect in any Angle.



3.International leading cooling technology to ensure that the display work in a constant temperature range; selection of high-quality power supply, to further ensure the display stable operation for a long time.



c4. Display brightness can be adjusted according to changes of ambient light, to ensure the display with optimum viewing for human eye, and achieving energy saving



5. The rating up to IP65,can adapt to all kinds of bad rain weather;tructural parts are made of a special surface treatment process, with good moisture corrosion resistance



6. electronic circuits are used in three anti-treatment process, to further protect the product against dust, moisture, corrosion, to ensure that products have strong weatherability, can be long-term used in harsh outdoor environments.



7. Provide hanging and stacking two installation options. convenient to rapid installation and dissembling. Multiple measures to ensure the reliability, security of the cabinet installation.



Specifications

Specifications



Pixel Configuration SMD1921
Pixel pitch(mm) 3.91
Pixel density(dots/m2) 65536
Module resolution(W×H) 64×64
Module size (mm) 250(W)×250(H)
Module weight (kg) 0.72
Maximum power consumption of the module(W) 45
Module of cabinet (W×H) 2×2/2×4
Cabinet resolution(W×H) 128×128/128×256
Cabinet size (mm) 500(W)×500/1000(H)×75(D)
Cabinet area(m2) 0.25/0.5
Cabinet weight (kg) 7/13
Cabinet level up degree(mm) ≤0.2
Maintenance mode Rear
Cabinet raw material Die-casting aluminum
Single-point brightness correction yes
Single – point color correction yes
White Balance Brightness (nits) ≥3500(6500K)
Color Temperature (K) 3200—9300(adjustable)
Viewing Angle (Horizontal / Vertical) 160/120
Deviation of center distance of light – emitting <3%
Brightness / chromaticity uniformity ≥97%
Contrast 4000:1
Peak power consumption (W / m2) 800
Average power consumption (W / m2) 250
Power supply requirements AC90~264V, frequency 47-63(Hz)
Frame rate (Hz) 50&60
Drive mode Constant drive, 1/16
Grayscale level 65536
Refresh rate (Hz) ≥1920
Number of color processing bits 14bit
Video playback capabilities 2KHD, 4KHD
Operating temperature / humidity range (℃ / RH) -20 – 60 / 10%-85%RH
Storage temperature / humidity range (℃ / RH) -20 – 60 / 10%-85%RH
Applicable standards CCC,TUV-CE,ETL



Modules and control box can be installed and maintained from either front or rear.
Detachable panel

Independent design of module, frame and control box

Touring Cart

Customized touring cart simplify your screen assembly in every show.

Light-blocking design

Patented light-blocking design prevents light leakage to the front.

Fast Lock Between Modules

Integrated curveable latch system

Protective Covers

Protective covers reduce all potential damages to a maximum extent.

The high precision panels can realize your valued creations by being assembled into concave and convex screens.



SMD2121 P3.91 LED Rental Display Commercial Advertising LED Display For Marketplace 0SMD2121 P3.91 LED Rental Display Commercial Advertising LED Display For Marketplace 1



Application:For Sport Centre Advertisement Marketplace Station Stage Background Outdoor Activities Etc.
