Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number AE-P1.25IFRGB
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Indoor Fixed LED Screen Pixels 1.25mm
Display Function Picture Module Size 200x150mm
Application Indoor Advertising Module Resolution 160*120
Screen Dimension Customized Tube Chip Color Full Color
Usage Indoor Brightness 400-1000cd/sqm
Warranty 3~5 Years Led Chip Epistar,Kinglight,Silan
Life Span 100000hours,100000 Hours Product Name Led Video Display Panel
Color 1R1G1B,Full-color,Full Color,RGB Refresh Rate 3840Hz,≥1920 Hz
High Light

commercial led display screen

,

retail led display

Leave a Message
Product Description

Refresh Frequency 3840Hz P1.25mm Indoor Fixed Super HD LED Display Ultra Slim Design Cabinet 400*300mm



Product Description:

  1. P1.25  ultra small pitches got you a impressive visual experience.
  2. Viewing angle: Widely viewing angle :With 140 degree in horizontal and 140degree in vertical.
  3. Design: Standard panel design made stocking, transportation, construction and maintenance easy and simple.
  4. High precision with seamless stitching made the picture vivid and natural.
  5. Low power consumption and long life span save your cost greatly.
  6. Working environment: Silent operation and little heat generated are available by the no fan design.
  7. The fast lock system made the mask more flat and improved its display effect.
  8. Contrast ratio: The contrast ratio for RGB reached 3:6:1, bringing the product excellent performance.

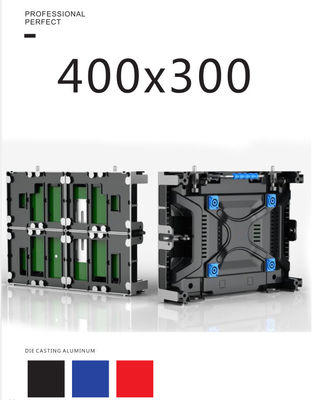

  9. Ultra slim design: Single cabinet weights only 4.6kg with adopting fashionable die-casting aluminum made the product easy to operate.



Parameters




Pixel Pitch 1.25mm
Pixel Density 640000 px/m2
LED Type SMD1010
LED Configuration 1R1G1B
Cabinet Dimension 400*300mm
Cabinet Resolution 320*240px
Cabinet Weight 4.6kg
Cabinet Material die-casting
Ingress Protection
(front/rear)
IP40/IP21
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/30 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C
-40~60°C
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003



Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm 0Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm 1Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm 2Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm 3Refresh Frequency 3840Hz P1.25mm Indoor Fixed LED Display Super HD Ultra Slim Design Cabinet 400*300mm 4
