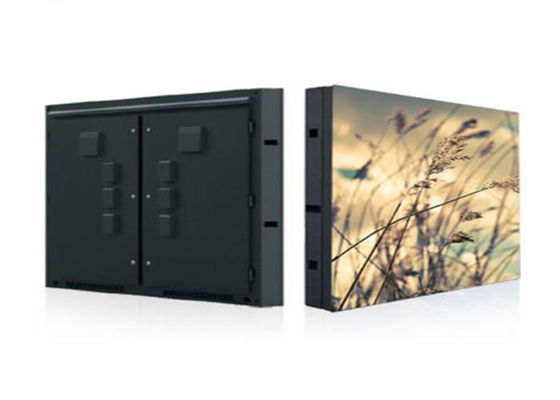

High Brightness 8000mcd Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm Module

Basic Information
Place of Origin: Shen Zhen China
Brand Name: AVOE LED
Certification: CE RoHS
Model Number: AE-P6OFRGB
Minimum Order Quantity: 5sqm
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month
Contact Now
Detail Information
Name: Outdoor LED Advertising Screen Pixel Pitch(mm): 6mm
Pixel Density(pixels/㎡): 27777 Pixel/㎡ Module Resolution: 32*32 Pixels
LED Type: SMD3535 Brightness(nits): ≥ 7000 Cd/㎡
Usage: Outdoor,subway Station,highway Station Advertising,train Station Pixels: P6
Screen Dimension: Customized Size Tube Chip Color: Full Color
Display Function: Video,animation,graphics Brightness: 6500cd/sqm
Warranty: 5 Years Application: Outdoor Advertising Led,Advertising,Outdoor,HOTEL,Advertising/stage Rental/Commercial Event
Life Span: 100000 Hours Color: 1R1G1B
Module Size: 192*192mm Product Name: Led Display Screen,P6 Outdoor Flexible Advertising LED Billboard Display/Displays
Led Chip: Kinglight Pixel Pitch: 6mm,6mm Outdoor Led Advertising Screen Price
Certification: CE,UL,CCC,ROHS,GS Pixel Density: 27777
Cabinet Size: 576*576mm Input Voltage: AC110V - AC240V

Product Description

High Brightness 8000mcd Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm Module



Features

1. High brightness LEDs with high luminous efficiency and low brightness decay
2. It can be installed without taking the space for maintenance channel into consideration, thus improving your work efficiency.

3. Long-term Brightness:6000-nit brightness(for outdoor full color) throughout product lifetime of the LED display
4. 1% spare parts provided for customers to replace defective ones in the future.

5. Brand new mask design makes the light from LEDs almost non-reflection.




Application

1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.


Parameters

Module Parameter



1
2 Model AE-P6OFRGB
3 Pixel Pitch 6mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 32*32 pixels
7 Module Size 192*192 mm



 Panel Parameter



8 Material Iron/Aluminum
9 Cabinet Resolution 160*128 pixels
10 Cabinet Size 960*768*115mm
11 Cabinet Weight 40Kg
12 IP Rating Front IP65, Rear IP54



Display Parameter



13 Pixel Density 27777 pixel/㎡
14 Refresh Rate ≥ 1920Hz
15 Gray Scale 16 Bit
16 Brightness ≥ 7000 cd/㎡
17 Scan Mode 1/8
18 Frame Rate 50HZ~60HZ
19 Viewing Angle H:140°, V:140°
20 Control System Nova/Linsn/Dbstar
21 Operation System Windows/me/200NT/XP
22 Working-Temperature '-20℃~60℃
23 Working Humidity 10%~90% RH
24 Input Voltage AC 110~220 V (±5%)
25 Blind spot rate ≤0.01%
26 MTBF 35000 Hour
27 Lifespan 100000 Hour



Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.

High Brightness 8000mcd  Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm ModuleHigh Brightness 8000mcd  Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm ModuleHigh Brightness 8000mcd  Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm ModuleHigh Brightness 8000mcd  Waterproof IP65 P6mm Outdoor Advertising LED Screen , Led Street Display 192*192mm Module

Advantages:

1,  High screen flatness with CNC technology Aluminum​ cabinet structure.

2,  Good vibration resistance function without screen shocks.

3,  High resolution, best viewing effect.

4, High refresh and brightness, could be adjusted according to your needs.
5, Stable quality, no need frequent maintenance.



Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation

2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
