P7.81-15.625 IP65 transparent led curtain display 5000cd/sqm Silver /black color frame

Place of Origin Shen Zhen China
Brand Name AVOE LED
Certification CE RoHS
Model Number 7.81-15.625
Minimum Order Quantity 5sqm
Price Negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Transparent LED Display Pixel Pitch 7.81-15.625
Pixel Density 8192 Tube Chip Color Full Color,RGB
Display Function Video,Animation,Graphics,Animation/ Graphics/ Video,Video/Image Brightness ≥5000nits
Life Span 100000hours Product Name Outdoor Led Display Advertising,Sunrise Transparent Bar Type Led Display,Led Video Display Screen
Color Color RGB Curtain Display Cabinet Size 500x1000mm Or 1000x1000mm
Viewing Angle 140 Degree /140 Degree Refresh Rate 1920Hz
High Light

glass wall led display

,

clear led screen

Leave a Message
Product Description

P7.81-15.625 IP65 transparent led curtain display 5000cd/sqm Silver /black color frame



Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~90% transparency, you won’t miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also view-able from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.

Transparent LED Display possesses transparent and modern product aesthetics which can benefit to installation over windows, glass facade and for creative event production as well. It is lightweight and ultra-thin, making deployment a breeze. High transparency guarantees natural view behind the screen while delivering clear and crisp contents view-able for both day and night.



Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level



Features



1. Install against the windows directly by special glue, suitable for glass wall lighting appliction



2. Flexible installation methods for various projects



3. Total clear body ensures stage lights go through easily



4. Single-person handling, easy transportation for touring shows



5. Light-weighted with 9kg/panel, perfectly applied for mobile shows and rental applications



6. Simple installation: can be directly installed behind the glass.



7. The protection rating can be IP65, so it is total waterproof

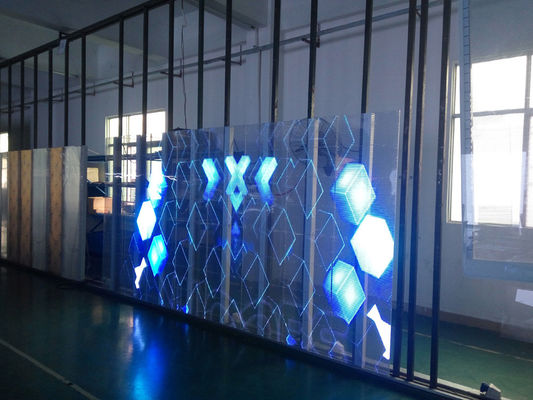

Detailed Pictures



P7.81-15.625 IP65 transparent led curtain display 5000cd/sqm Silver /black color frame 0P7.81-15.625 IP65 transparent led curtain display 5000cd/sqm Silver /black color frame 1P7.81-15.625 IP65 transparent led curtain display 5000cd/sqm Silver /black color frame 2

P3.91

P3.91

P3.91





Application



Transparent Glass Wall LED Display for building glass wall, Auto 4S shop,
high-end clothing stores, retail windows, stage rental, et



Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
